NSAA 2016 Section 1, Part D (Biology questions)

Between 1954 and 1971 a mine in Northern Australia was releasing excess copper into the nearby Finnis River. Copper ions are poisonous and most of the types of fish living in the river died. The river still remains polluted with copper, but scientists have discovered one type of rainbow fish that is able to survive and live in the river.

A student wrote the following statements in order to explain this information.

1. One type of rainbow fish did not die out in the river because this type was able to adapt to the changing environment.
2. None of the other types of fish showed any type of genetic variation.
3. The presence of copper ions acted as a selective pressure.

Which of the student's statements could be correct?

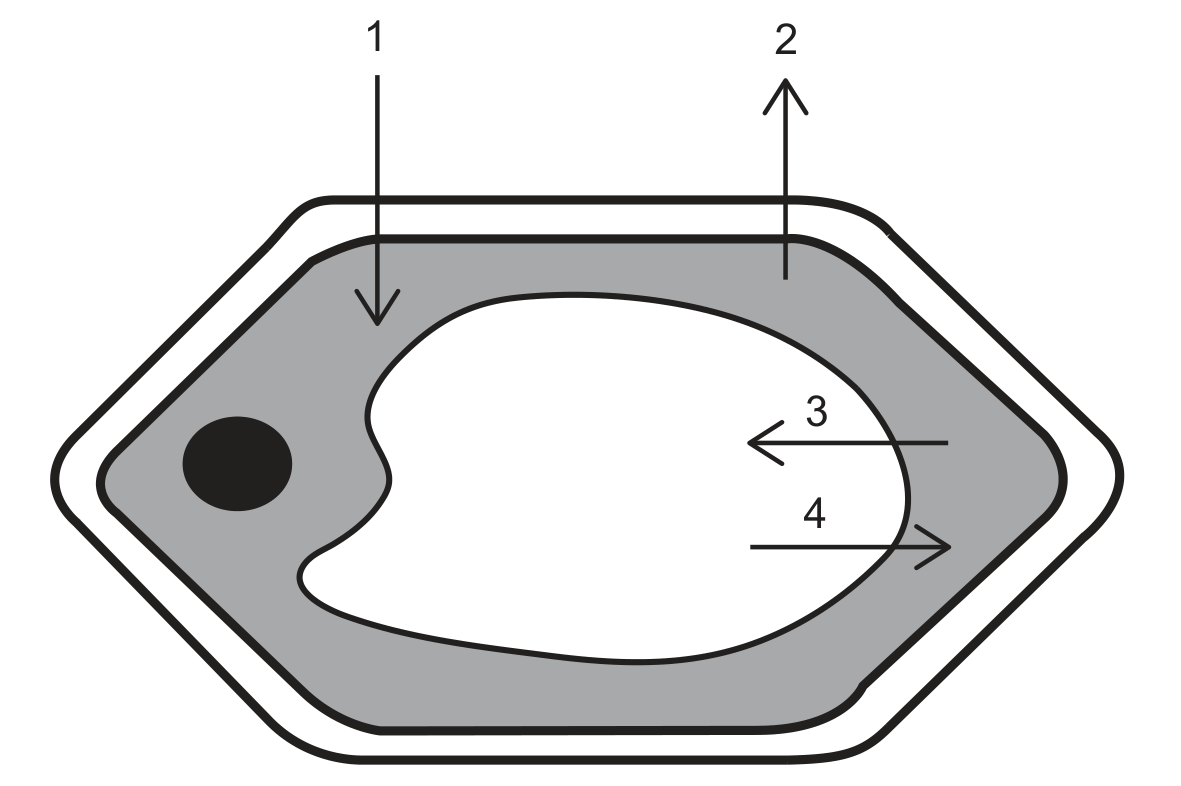

The diagram shows a plant cell.

Which of the arrows on the diagram show the net movement of water molecules, by osmosis, when the cell is surrounded by a solution that is more concentrated than the solution in the cytoplasm?

A student described a population of organisms as having the following features

1. single celled
2. chloroplasts present
3. cell wall present

Using this information, which type of organism could this describe?

A student carried out an experiment to investigate how temperature affects the rate of activity of an enzyme found in potatoes. This enzyme breaks down the substrate hydrogen peroxide to produce water and oxygen.

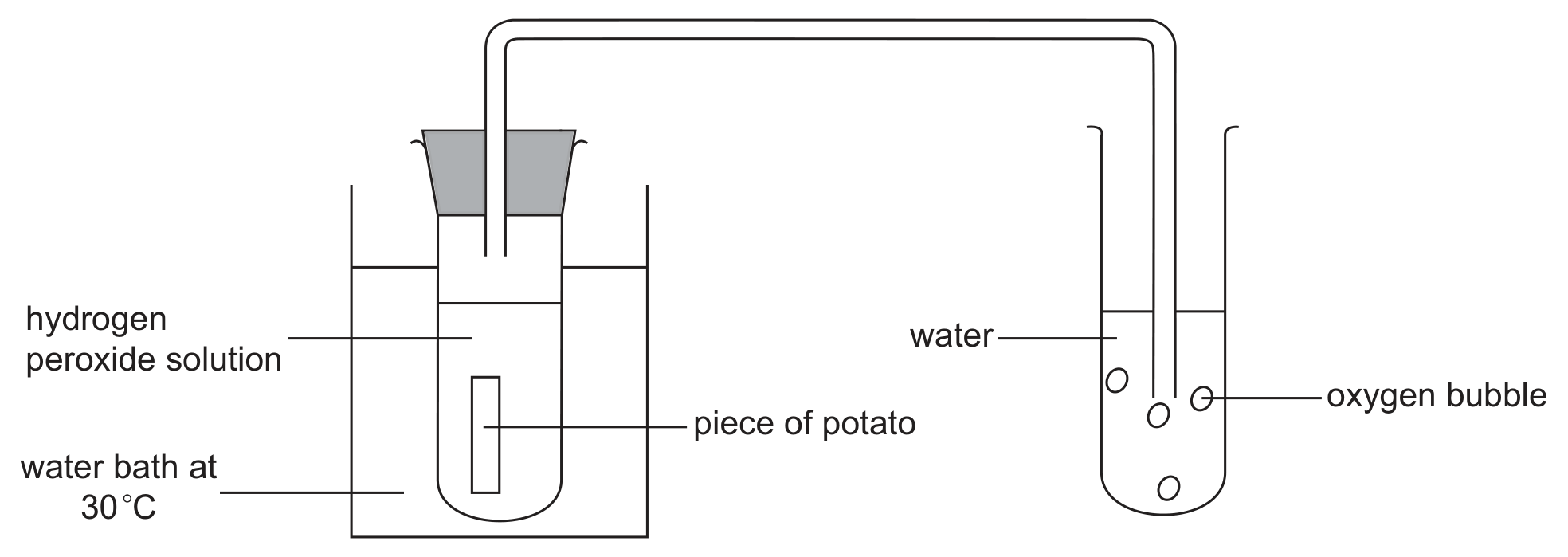

The apparatus was set up as shown in the diagram and the experiment carried out at $30{}^{\circ }\text{C}$.

The student counted the number of bubbles of oxygen produced in one minute.

The experiment was repeated at $40{}^{\circ }\text{C}$, $50{}^{\circ }\text{C}$, $60{}^{\circ }\text{C}$, and $70{}^{\circ }\text{C}$.

The table shows the results collected by the student.$$\begin{array}{cc}{\text{temperature / }}^{\circ }\text{C}& \text{number of bubbles of oxygen gas produced in one minute}\\ 30& 32\\ 40& 27\\ 50& 23\\ 60& 8\\ 70& 2\end{array}$$A group of students were given these results and asked to calculate the percentage decrease in the number of bubbles produced between $30{}^{\circ }\text{C}$ and $60{}^{\circ }\text{C}$. Each student was also asked to write a conclusion to explain the results. These are shown in the table below.

Which student correctly calculated the percentage decrease in the number of bubbles between $30{}^{\circ }\text{C}$ and $60{}^{\circ }\text{C}$ and wrote an appropriate conclusion which explains the reason for this decrease?

(Each option gives the percentage decrease in the number of bubbles between $30{}^{\circ }\text{C}$ and $60{}^{\circ }\text{C}$, then the conclusion.)

Albinism is a recessive genetic condition that results in the absence of the pigment melanin in the skin, hair and eyes. In a population of 580 000 people there were 29 albinos and 81 200 symptomless carriers. One living cheek cell was collected from every individual in the population.

What is the number of albinism alleles in these cells?

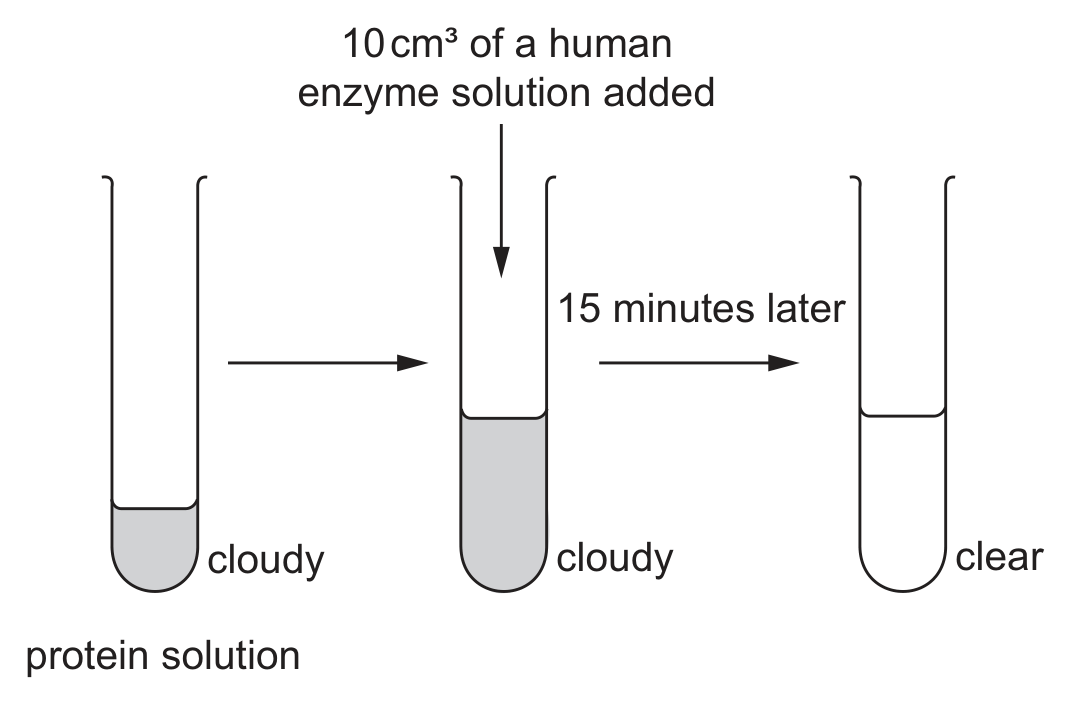

A student set up the following apparatus at a temperature of $25{}^{\circ }\text{C}$ and at pH 7.

What could the student change so that it would take less than 15 minutes for the solution to become clear?

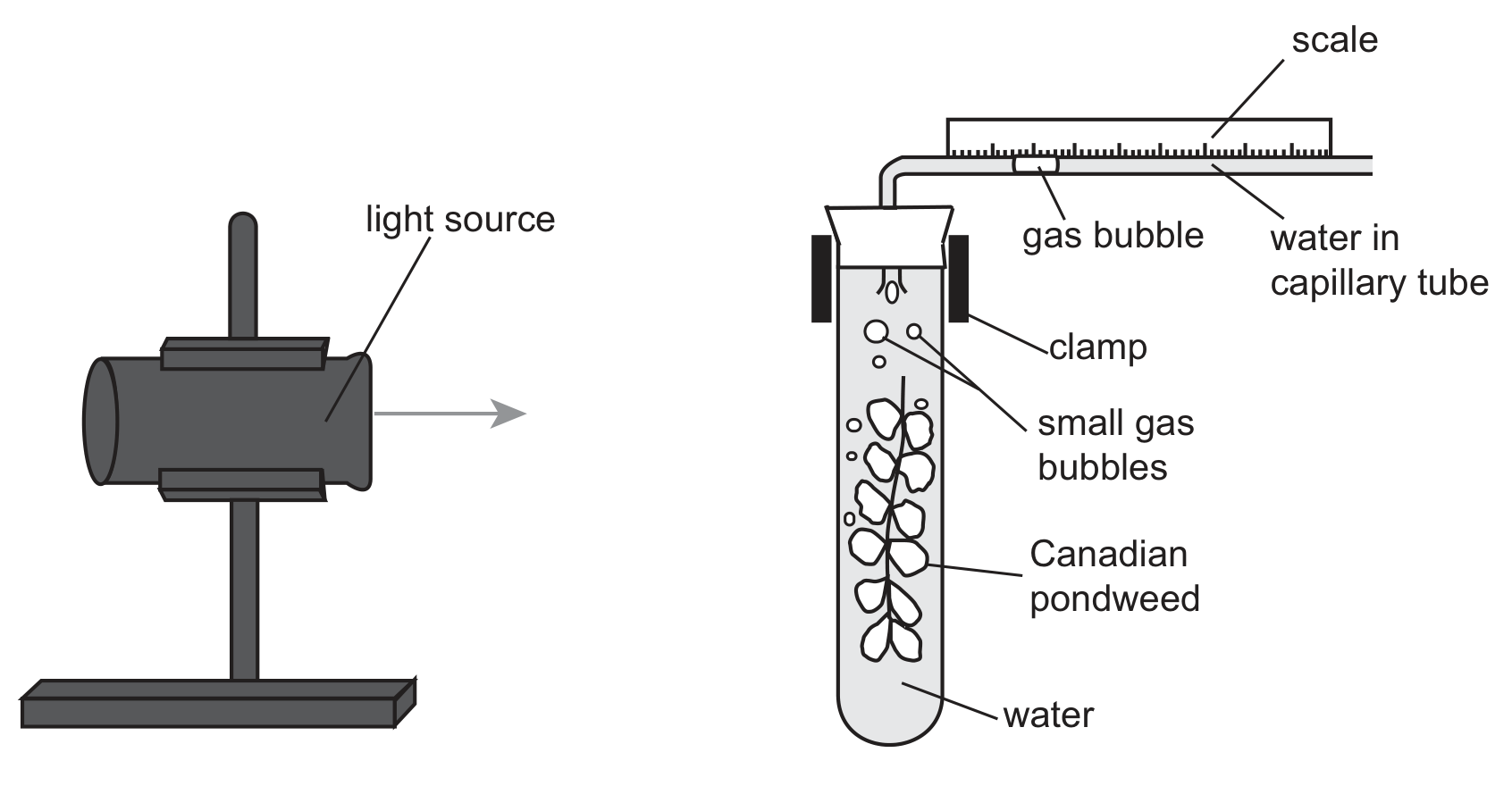

The diagram shows the apparatus used by a student to carry out an investigation into the rate of photosynthesis in pondweed.

The student measured the distance the gas bubble moved along the capillary tube in 3 minutes as 16 mm. The student calculated the volume of gas produced using the distance moved and the diameter of the capillary tube which was 1.0 mm. After 3 minutes the rate of gas production is reduced.

Which row represents the correct statements for this experiment?

(Each option gives the volume of gas produced in ${\text{mm}}^3$, then the reason for the reduction in the rate of gas production after 3 minutes.)

A student used a light microscope at a magnification of 40x to observe a slide of a stained non-dividing tissue. In the cells of this tissue, the student noted the presence of a large central vacuole and cytoplasm containing a single, stained, round structure.

Which of the following structures, if any, might the student also have seen in this tissue at this magnification?

1. cell wall
2. mitochondria
3. chromosomes

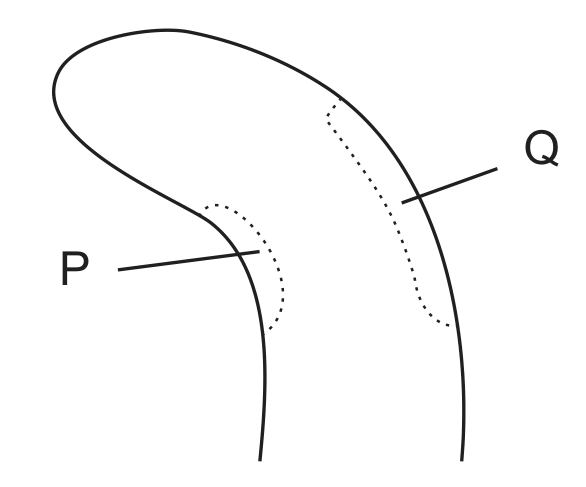

The diagram shows the tip of a plant shoot, with two areas labelled P and Q.

A student wrote the following statements to explain the growth of this shoot:

1. Cells at P are smaller than the cells at Q.
2. Concentration of plant hormone is higher at Q than P.
3. Unidirectional light has caused a change in the concentration of plant hormone at P.

Which of the student's statements, if any, could be correct?

In an investigation, a molecule of DNA was extracted and separated into its single strands 1 and 2. The percentage of each base present in each strand was found.

The table shows some of the results for strand 1 (base present, as a percentage).$$\begin{array}{ccccc}\text{DNA sample}& \text{adenine [A]}& \text{cytosine [C]}& \text{guanine [G]}& \text{thymine [T]}\\ \text{strand 1}& 26& ?& 28& 14\end{array}$$P, Q, R and S are the percentages of each base in the complementary strand 2.$$\begin{array}{ccccc}\text{DNA sample}& \text{adenine [A]}& \text{cytosine [C]}& \text{guanine [G]}& \text{thymine [T]}\\ \text{strand 2}& P& Q& R& S\end{array}$$A student calculates the following percentages for P, Q, R and S:

P 14% Q 28% R 26% S 28%

Which of the percentages is/are correct?

Cystic fibrosis is a condition of the respiratory system caused by abnormal ion transport in the lungs. It is a recessive genetic condition.

A female carrier has a child with a male who is also a carrier. What are the probabilities of the child having the characteristics described in the table below?

(Each option gives the probability that the child is a male with cystic fibrosis, then the probability that the child is a female who does not have cystic fibrosis but carries the recessive allele.)

Organisms interact with each other in many different ways, for example:

1. a tapeworm absorbing nutrients from a sheep intestine
2. a bacterial cell breaking down undigested food in a human gut
3. a leopard and a lion hunting an antelope
4. male deer fighting with each other to gain a mate
5. oak trees growing close to each other in a wood

Which of the statements is/are an example of intraspecific competition?

A diploid cell from a type of fly that contains 8 chromosomes, divides to form sperm cells.

Which row is correct for the number of strands of DNA in each sperm cell and the number of sperm cells produced?

(Each option gives the number of strands of DNA in each sperm cell, then the number of sperm cells produced.)

A healthy human is running a race over a distance of 1500 metres as fast as possible.

Which row shows molecules that would be in a higher concentration in a vein carrying blood away from an actively contracting leg muscle of the runner compared to an artery carrying blood to the capillaries in the muscle?

(Each option states, for glucose, carbon dioxide and lactic acid in turn, whether the concentration in the vein is higher or not higher.)

The sex of species Q is controlled by two chromosomes X and Y.

The sex of females of species Q is controlled by inheriting the same combination of sex chromosomes as healthy extbf{male} humans. The sex of males in species Q is inherited in the same way as healthy extbf{female} humans.

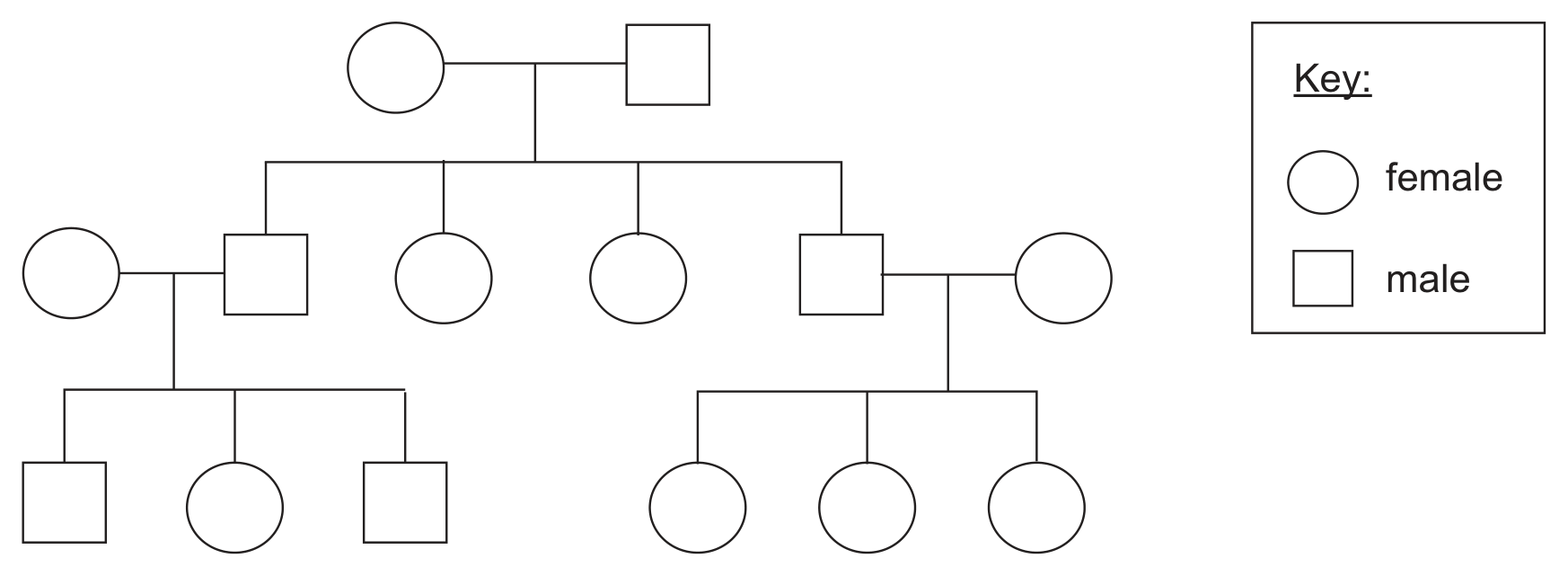

The family tree for one population of species Q is shown.

What is the ratio in its simplest form of males to females and the total number of Y chromosomes in this family tree?

(Each option gives the ratio of males to females, then the total number of Y chromosomes.)

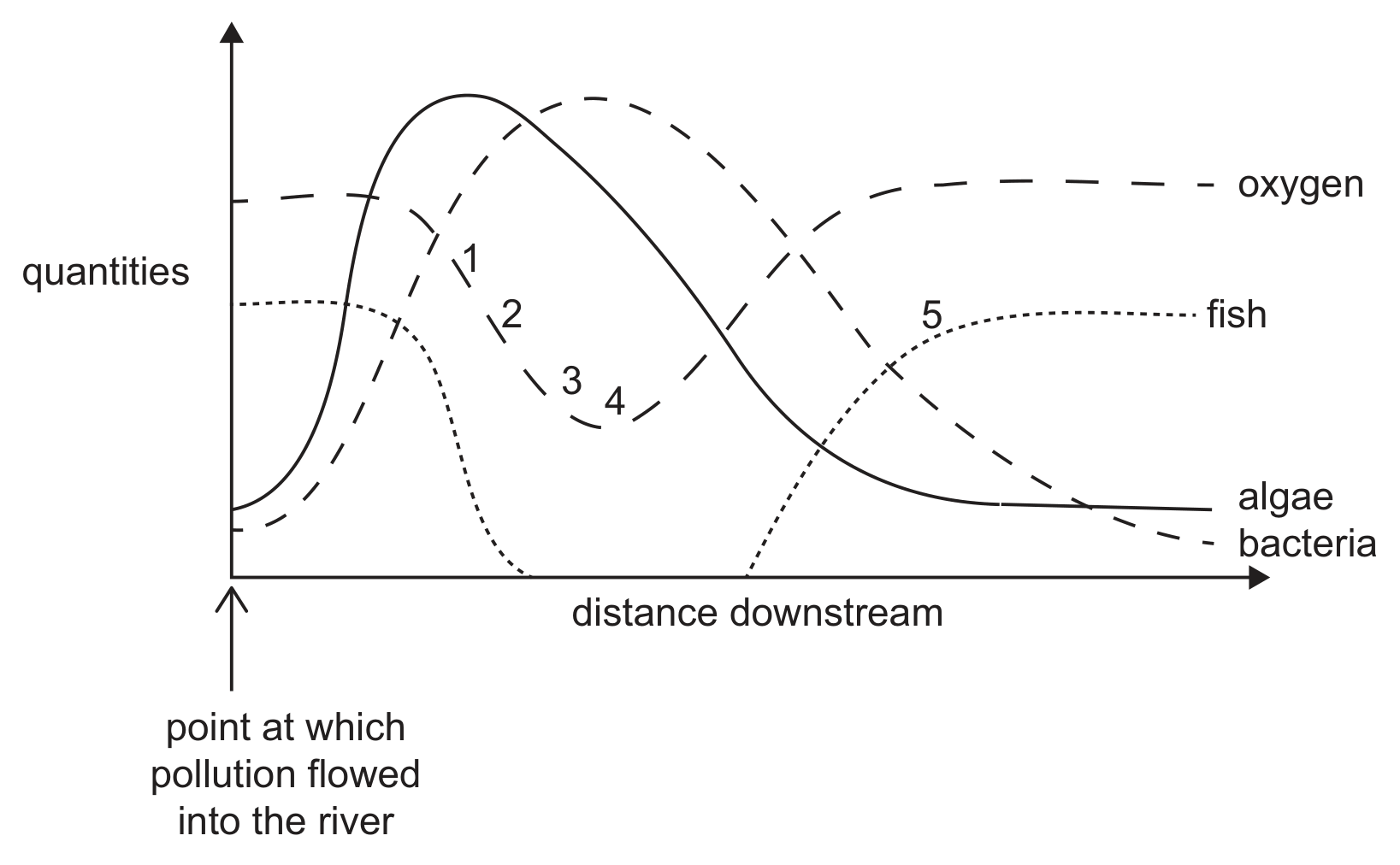

The graph shows how a number of factors vary with the distance down a river, after a source of pollution flowed in.

(Assume the oxygen concentration is changing only based on the species present in the river.)

Which one of the statements below can be correctly concluded from the graph?

The graph shows the effect of increasing the substrate concentration on an enzyme-controlled reaction when all the other variables were kept constant.

Which of the following labels, if any, could be correct for the $y$-axis?

1. rate of substrate loss / ${\text{mg min}}^{-1}$
2. rate of enzyme-substrate complex formation / number of complexes ${\text{s}}^{-1}$
3. rate of product formed per enzyme molecule / ${\text{mg min}}^{-1}$

The table shows the DNA base triplet codes that are valid for this question and the amino acids that they code for.$$\begin{array}{cc}\text{DNA base triplet}& \text{amino acid}\\ \text{CGT}& \text{arginine}\\ \text{CGC}& \text{arginine}\\ \text{CGA}& \text{arginine}\\ \text{CGG}& \text{arginine}\\ \text{CTG}& \text{leucine}\\ \text{CCG}& \text{proline}\\ \text{CAG}& \text{glutamine}\\ \text{CAT}& \text{histidine}\\ \text{AGT}& \text{serine}\end{array}$$Consider the part of the DNA sequence shown:$$\dots \text{ CGC AGT }\dots \to$$Two mutations will occur in the DNA sequence. The initial mutation is an insertion of an additional base between the first and second bases in the sequence. The second mutation, which takes place some time after the first mutation, is a deletion that removes one base from the sequence.

Assuming that this DNA sequence is part of a longer sequence coding for a protein, and that no other mutations are occurring, what are the probabilities of the following?

(Each option gives the probability that, after the first mutation, the first triplet in this sequence does extbf{not} code for arginine, then the probability that, after the second mutation, both of the triplets in this sequence code for arginine.)
