NSAA 2020 Section 1, Part C (Chemistry questions)

Consider only the first three metals in Group 1 (Li, Na, K) and only the first three elements in Group 17 (F, Cl, Br).

Which of the following statements is/are correct for the compound lithium bromide?

1 It is formed from the least reactive of the three Group 17 elements.

2 It is formed from the least reactive of the three Group 1 elements and the Group 17 element (of the three) with the lowest boiling point.

3 It is formed from the Group 1 element (of the three) with the highest melting point.

Use the following data table to answer the question.$$\begin{array}{ccc}\text{gas}& {\text{melting point / }}^{\circ }\text{C}& {\text{boiling point / }}^{\circ }\text{C}\\ \text{hydrogen}& -259& -253\\ \text{nitrogen}& -210& -196\\ \text{oxygen}& -219& -183\\ \text{neon}& -249& -246\\ \text{argon}& -189& -186\end{array}$$Water and carbon dioxide were removed from a sample of air and the remaining mixture was cooled to $-260{}^{\circ }\text{C}$.

The three most abundant remaining elements are to be separated by fractional distillation.

In which order would these three elements be collected?

Molecule J is a straight-chain hydrocarbon containing one carbon-carbon double bond.

The relative atomic mass ($A_{\text{r}}$) of hydrogen is 1 and carbon is 12.

What is the minimum additional information that is needed in order to determine the molecular formula of molecule J?

1 The percentage by mass of carbon in the molecule.

2 The percentage by mass of hydrogen in the molecule.

3 The relative molar mass ($M_{\text{r}}$) of the molecule.

Which of the following tests could be used, on its own, to distinguish between all three of the following white solids: potassium carbonate, calcium chloride and sodium sulfate?

1 Add a small amount of each solid separately to a platinum wire and hold in a colourless flame.

2 Dissolve a small amount of each solid separately in deionised water and add a few drops of sodium hydroxide solution.

3 Dissolve a small amount of each solid separately in deionised water and add a few drops of hydrochloric acid, followed by barium chloride solution.

Which one of the following formulae is correct for the compound given?

Iodic acid, $\mathrm{HI}{\mathrm{O}}_3$, can be made from iodine in the following reaction:$${\mathrm{I}}_2+w{\mathrm{H}}_2\mathrm{O}+x\mathrm{C}{\mathrm{l}}_2\to y\mathrm{HI}{\mathrm{O}}_3+z\mathrm{HCl}$$What is the value of $x$ when the equation is balanced?

Some dilute aqueous solutions were electrolysed using graphite electrodes.

Which of the rows in the table show(s) the correct products of electrolysis?

The table gives, for each row, the aqueous electrolyte, then the product at the cathode (negative electrode) and the product at the anode (positive electrode).$$\begin{array}{cccc}& \text{aqueous electrolyte}& \text{at the cathode}& \text{at the anode}\\ 1& \text{potassium hydroxide}& \text{potassium}& \text{oxygen}\\ 2& \text{copper(II) chloride}& \text{chlorine}& \text{copper}\\ 3& \text{sodium sulfate}& \text{hydrogen}& \text{sulfur}\end{array}$$

Which of the following statements about elements in the Periodic Table is/are correct?

1 When the element in Period 5, Group 2 reacts with the element that is in Period 3, Group 17, a redox reaction occurs.

2 In each Group, the elements from Period 2 are more reactive than the elements from Period 5.

3 The compound formed between the element in Period 2, Group 14 and the element in Period 3, Group 17 will have a simple molecular structure.

Which of the following equations represent(s) a redox reaction?

1 ${\mathrm{K}}_2\mathrm{C}{\mathrm{r}}_2{\mathrm{O}}_7+2\mathrm{KOH}\to 2{\mathrm{K}}_2\mathrm{Cr}{\mathrm{O}}_4+{\mathrm{H}}_2\mathrm{O}$

2 $8\mathrm{HN}{\mathrm{O}}_3+3{\mathrm{C}}_2{\mathrm{H}}_6\mathrm{O}+{\mathrm{K}}_2\mathrm{C}{\mathrm{r}}_2{\mathrm{O}}_7\to 2\mathrm{KN}{\mathrm{O}}_3+3{\mathrm{C}}_2{\mathrm{H}}_4\mathrm{O}+7{\mathrm{H}}_2\mathrm{O}+2\mathrm{Cr}(\mathrm{N}{\mathrm{O}}_3{)}_3$

3 ${\mathrm{H}}_2\mathrm{O}+\mathrm{S}{\mathrm{O}}_2\to {\mathrm{H}}_2\mathrm{S}{\mathrm{O}}_3$

A paper chromatogram is set up with an orange food colouring spotted on the baseline.

Ten minutes after the start, the solvent front has moved $15.0\text{ cm}$ up the paper from the baseline and a yellow spot is $12.0\text{ cm}$ above the baseline.

Five minutes later, the solvent front has moved up a further $10.0\text{ cm}$.

How far from the baseline will the yellow spot be 15 minutes after the start?

$10\text{ g}$ of a mixture of solid magnesium hydroxide, $\mathrm{Mg}(\mathrm{OH}{)}_2$, and solid sodium hydroxide, $\mathrm{NaOH}$, is added to an excess of water and stirred.

One of the components of the mixture dissolves. Assume that the other is completely insoluble.

The mixture is filtered to remove the insoluble component of the mixture.

$50{\text{ cm}}^3$ of $1.0{\text{ mol dm}}^{-3}$ sulfuric acid exactly neutralises the remaining solution.

What is the mass of magnesium hydroxide in the original mixture?

($M_{\text{r}}$ values: $\mathrm{Mg}(\mathrm{OH}{)}_2=58$; $\mathrm{NaOH}=40$)

$100{\text{ cm}}^3$ of ethane is mixed with $1400{\text{ cm}}^3$ of oxygen and the mixture is ignited.

All volumes are measured at atmospheric pressure and a temperature of $150{}^{\circ }\text{C}$.

What will be the total volume of gas after the complete combustion?

(Assume that equal amounts of any gas at the same temperature and pressure occupy the same volume.)

Hydrochloric acid, sulfuric acid and phosphoric(V) acid are inorganic acids.

Phosphoric(V) acid, ${\mathrm{H}}_3\mathrm{P}{\mathrm{O}}_4$, ionises in water in the following series of reactions:$${\mathrm{H}}_3\mathrm{P}{\mathrm{O}}_4\rightleftharpoons {\mathrm{H}}^{+}+{\mathrm{H}}_2\mathrm{P}{\mathrm{O}}_4^{-}$$$${\mathrm{H}}_2\mathrm{P}{\mathrm{O}}_4^{-}\rightleftharpoons {\mathrm{H}}^{+}+\mathrm{HP}{\mathrm{O}}_4^{2-}$$$$\mathrm{HP}{\mathrm{O}}_4^{2-}\rightleftharpoons {\mathrm{H}}^{+}+\mathrm{P}{\mathrm{O}}_4^{3-}$$$0.1{\text{ mol dm}}^{-3}$ hydrochloric acid has a pH of 1.0 at room temperature.

Which of the following statements about these acids is/are correct?

1 The pH of $0.1{\text{ mol dm}}^{-3}$ sulfuric acid is greater than 1.0 at room temperature.

2 ${\mathrm{H}}_2\mathrm{P}{\mathrm{O}}_4^{-}$ can act as an acid or as a base.

3 $30{\text{ cm}}^3$ of calcium hydroxide solution exactly neutralises $20{\text{ cm}}^3$ phosphoric(V) acid solution when both solutions are the same concentration.

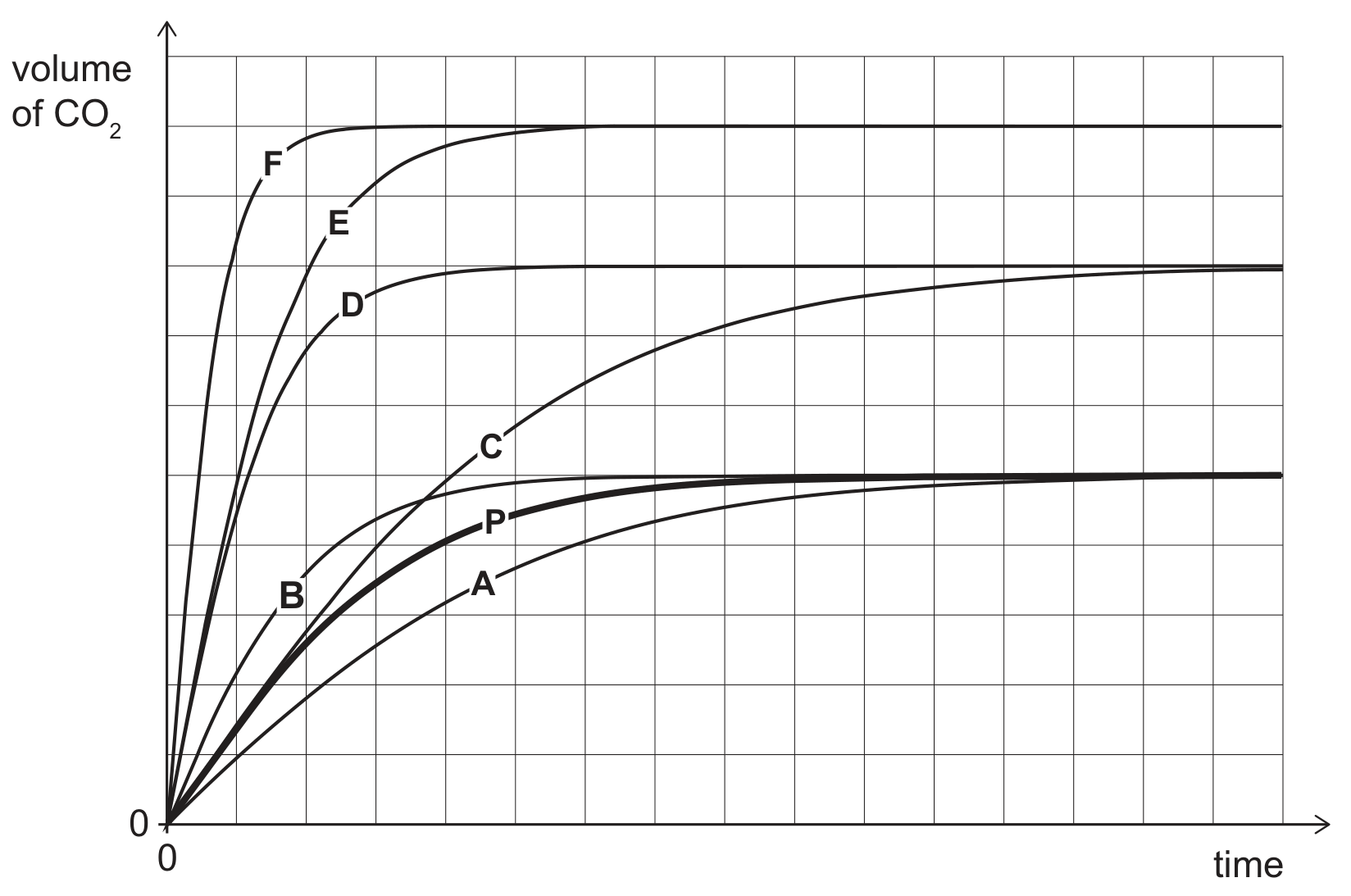

Calcium carbonate reacts with hydrochloric acid according to the following chemical equation:$$\mathrm{CaC}{\mathrm{O}}_3(\mathrm{s})+2\mathrm{HCl}(\mathrm{aq})\to \mathrm{CaC}{\mathrm{l}}_2(\mathrm{aq})+{\mathrm{H}}_2\mathrm{O}(\mathrm{l})+\mathrm{C}{\mathrm{O}}_2(\mathrm{g})$$Line P on the graph shows how the volume of carbon dioxide formed changes with time when $4.0\text{ g}$ of calcium carbonate reacts with $50{\text{ cm}}^3$ of $1.0{\text{ mol dm}}^{-3}$ hydrochloric acid at $20{}^{\circ }\text{C}$.

A second reaction was carried out under identical conditions with the same mass of calcium carbonate but using $50{\text{ cm}}^3$ of $2.0{\text{ mol dm}}^{-3}$ hydrochloric acid.

Which line (A-F) best represents how the volume of carbon dioxide formed changes with time in the second reaction?

($M_{\text{r}}$ value: $\mathrm{CaC}{\mathrm{O}}_3=100$)

An element Z forms an ionic compound $\mathrm{ZS}{\mathrm{O}}_4$ which has $M_{\text{r}}=120.4$

The ion of Z in $\mathrm{ZS}{\mathrm{O}}_4$ has 10 electrons.

Element Z has three isotopes, labelled L, M and N, which contain the following numbers of neutrons.$$\begin{array}{cccc}\text{isotope}& \text{L}& \text{M}& \text{N}\\ \text{number of neutrons}& 12& 13& 14\end{array}$$The percentage abundances of isotopes M and N are the same.

What is the percentage abundance of the isotope L in the element Z in $\mathrm{ZS}{\mathrm{O}}_4$?

($M_{\text{r}}$ value: $\mathrm{S}{\mathrm{O}}_4^{2-}=96.1$)

Complete combustion of $1\text{ mol}$ of hydrocarbon X requires exactly $8.5\text{ mol}$ of oxygen.

Incomplete combustion of $1\text{ mol}$ of hydrocarbon X, to form carbon monoxide and water only, requires exactly $5.5\text{ mol}$ of oxygen.

How many hydrogen atoms are there in one molecule of hydrocarbon X?

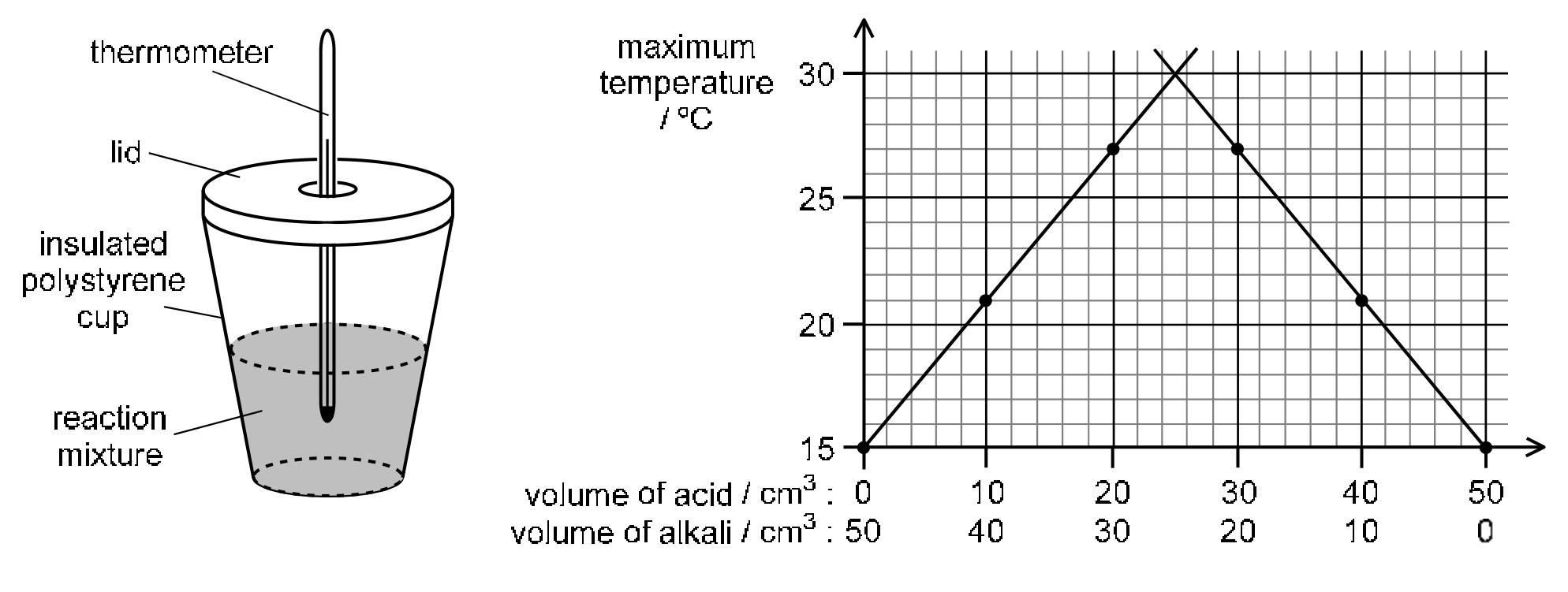

Four separate experiments were carried out using different quantities of $2{\text{ mol dm}}^{-3}$ hydrochloric acid and $2{\text{ mol dm}}^{-3}$ sodium hydroxide in insulated polystyrene cups.

After stirring, the maximum temperature was recorded and the results plotted on a graph as shown.

The temperatures of the acid and alkali on their own were also plotted on the graph. Two straight lines were drawn and extrapolated as shown.

What is the molar enthalpy change for the neutralisation reaction, in ${\text{kJ mol}}^{-1}$?

(Assume that the specific heat capacity of the solutions is $4{\text{ J g}}^{-1}{}^{\circ }{\text{C}}^{-1}$, the density of dilute solutions is $1{\text{ g cm}}^{-3}$, and all heat is transferred to the solution.)

An experiment is carried out using the first three metals in Group 1: lithium, sodium and potassium.

The initial masses of three open beakers each containing $100\text{ g}$ samples of an alcohol are recorded.

In three separate experiments, equal small masses of lithium, sodium and potassium are added to the three beakers, which are on electronic balances.

Each metal reacts in a similar way and after the reaction is complete, the final mass of each beaker and its contents is recorded.

In each case, the final mass of the beaker and its contents is compared to the recorded initial mass before the alkali metal was added.

Which of the following statements is correct?

X is a solution of sulfuric acid.

$20.0{\text{ cm}}^3$ of X is diluted by adding distilled water to produce $500{\text{ cm}}^3$ of solution Y.

$10.0{\text{ cm}}^3$ of Y is exactly neutralised by $40.0{\text{ cm}}^3$ of $0.0500{\text{ mol dm}}^{-3}$ aqueous potassium hydroxide.

What is the concentration of sulfuric acid in X?

An electric current is the flow of charged particles.

In an electrolysis of aluminium oxide using inert electrodes, the current flows at $5.00\times 10^{-6}$ moles of electrons per second.

Assume that only aluminium oxide is present and the aluminium is a single isotope ${}_{13}^{27}\mathrm{Al}$.

What mass of aluminium is produced in 48 seconds?
