NSAA 2022 Section 1 Part B (ESAT Physics)

There is a constant current in a conducting wire. A charge of $20\text{ C}$ passes through the wire in $1.5$ minutes.

An $18\text{ cm}$ straight section of this wire lies in a uniform magnetic field. This section of wire is perpendicular to the direction of the field. The magnetic field strength is $0.15\text{ T}$.

What is the magnitude of the magnetic force on this section of wire?

A rider on a rollercoaster moves very quickly towards a solid wall. While moving, the rider shouts, and hears an echo of the shout from the wall. The echo is quieter than the original shout.

How do the amplitude and frequency of the echo heard by the rider compare to the amplitude and frequency of the original shout?

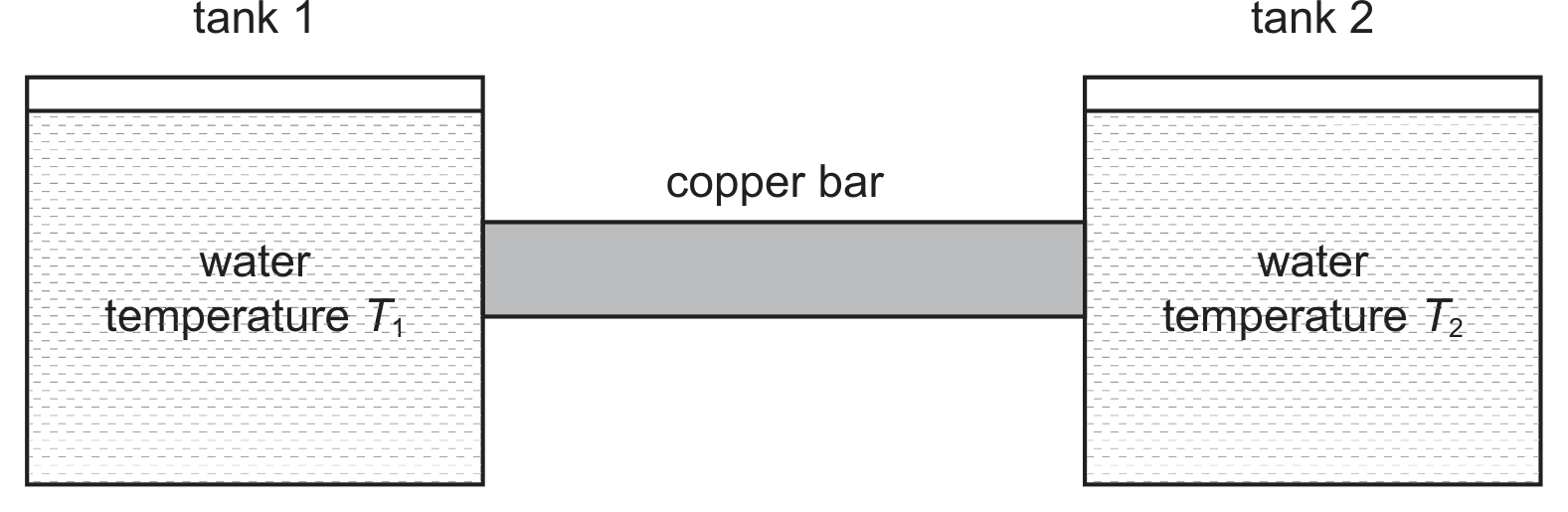

The diagram shows a system consisting of two large copper tanks of water connected to each other by a solid cylindrical copper bar.

The temperature of the water in tank 1 is $T_1$. The water in tank 2 is at a higher temperature $T_2$.

The following four statements list changes that can be made, independently, to the system. At all times $T_1<T_2$.

1. increase temperature $T_1$
2. increase temperature $T_2$
3. increase the length of the copper bar
4. increase the diameter of the copper bar

Which two changes each independently result in an increase in the rate of conduction of thermal energy along the copper bar?

Two identical resistors are connected in parallel to a $6.0\text{ V}$ battery. The two resistors dissipate a total power of $0.15\text{ W}$.

One of these resistors is removed from the circuit and connected to a $12\text{ V}$ battery.

How much charge passes through this resistor in $6.0$ minutes?

A small piece of space debris of mass $0.10\text{ g}$ strikes the International Space Station at a relative speed of $15000{\text{ m s}}^{-1}$.

The piece of debris comes to rest relative to the space station in a time of $0.010\text{ s}$.

What is the average force exerted on the space station by the piece of debris during this time?

A block of mass $6.0\text{ kg}$ is pushed along a rough horizontal surface by a constant force of $8.0\text{ N}$. The block accelerates uniformly from rest. After $4.0\text{ s}$ its velocity is $2.0{\text{ m s}}^{-1}$.

How much work is done against resistive forces during this $4.0\text{ s}$?

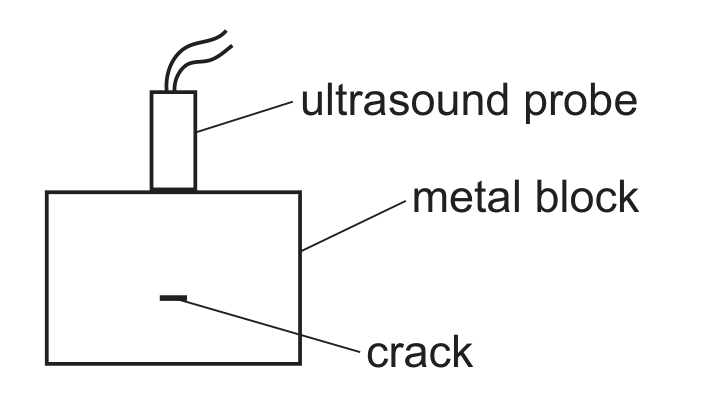

Ultrasound is used to find a crack inside a cuboid block of metal. An ultrasound probe is held in contact with the top surface of the metal block and perpendicular to the surface. A short pulse of ultrasound is sent into the metal block at time $t=0\text{ ms}$ and reflects from both the crack and the bottom surface of the metal block.

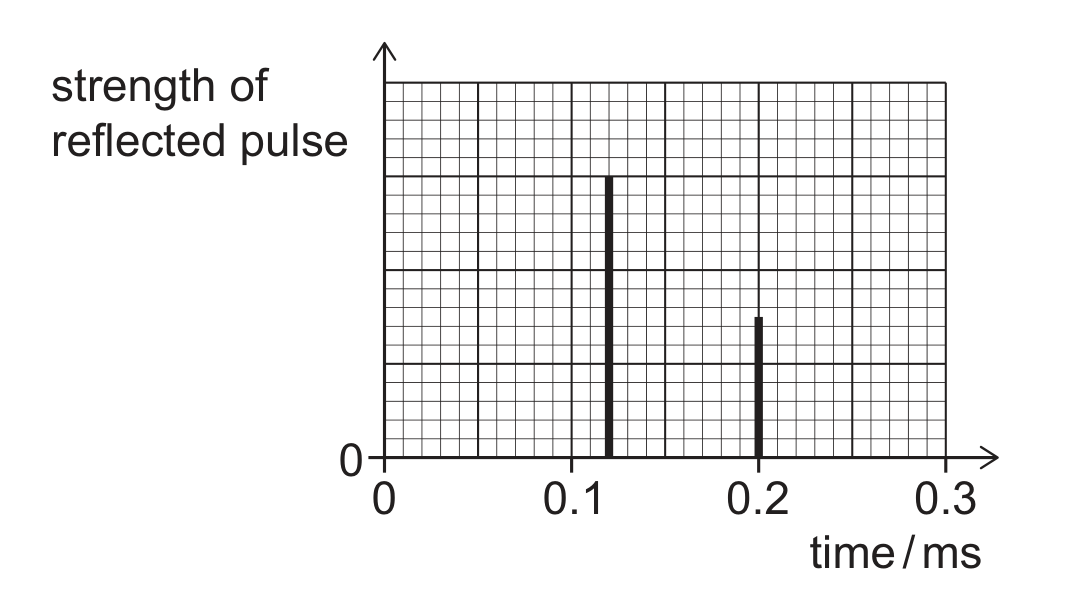

The times between the emission of the ultrasound pulse and the return of the reflections to the probe, and the strengths of the reflected pulses, are measured. The graph shows two reflected pulses: a stronger one at $t=0.12\text{ ms}$ and a weaker one at $t=0.20\text{ ms}$.

The speed of ultrasound in the metal is $5000{\text{ m s}}^{-1}$.

What is the distance between the bottom surface of the metal block and the crack?

Power is supplied to an electric motor at $0.800\text{ kW}$.

The motor has an efficiency of $60\%$ and is switched on for half an hour.

How much energy is wasted during this time?

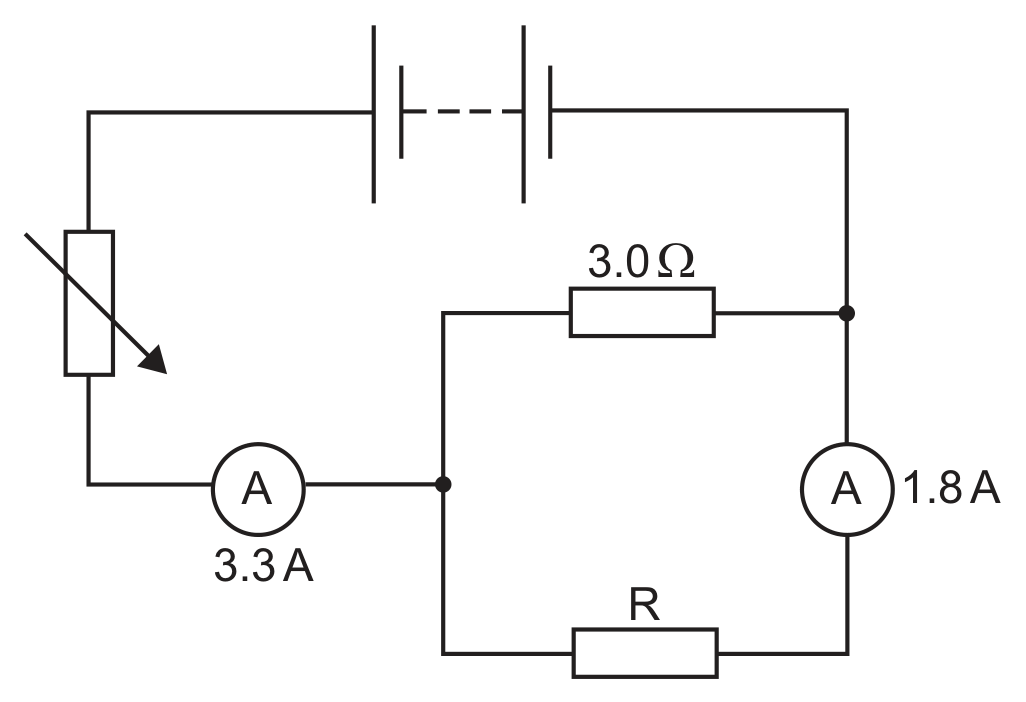

The diagram shows a circuit that includes two ammeters and a resistor R.

A variable resistor (rheostat) is connected in series with a battery and a first ammeter, which reads $3.3\text{ A}$; this current then splits between two parallel branches, a $3.0\Omega$ resistor and the resistor R, before returning to the battery. A second ammeter is placed in the branch carrying the current back from resistor R towards the battery (after resistor R's branch rejoins the main return wire, but before the $3.0\Omega$ branch's own connection to that return wire); it reads $1.8\text{ A}$.

What is the resistance of resistor R?

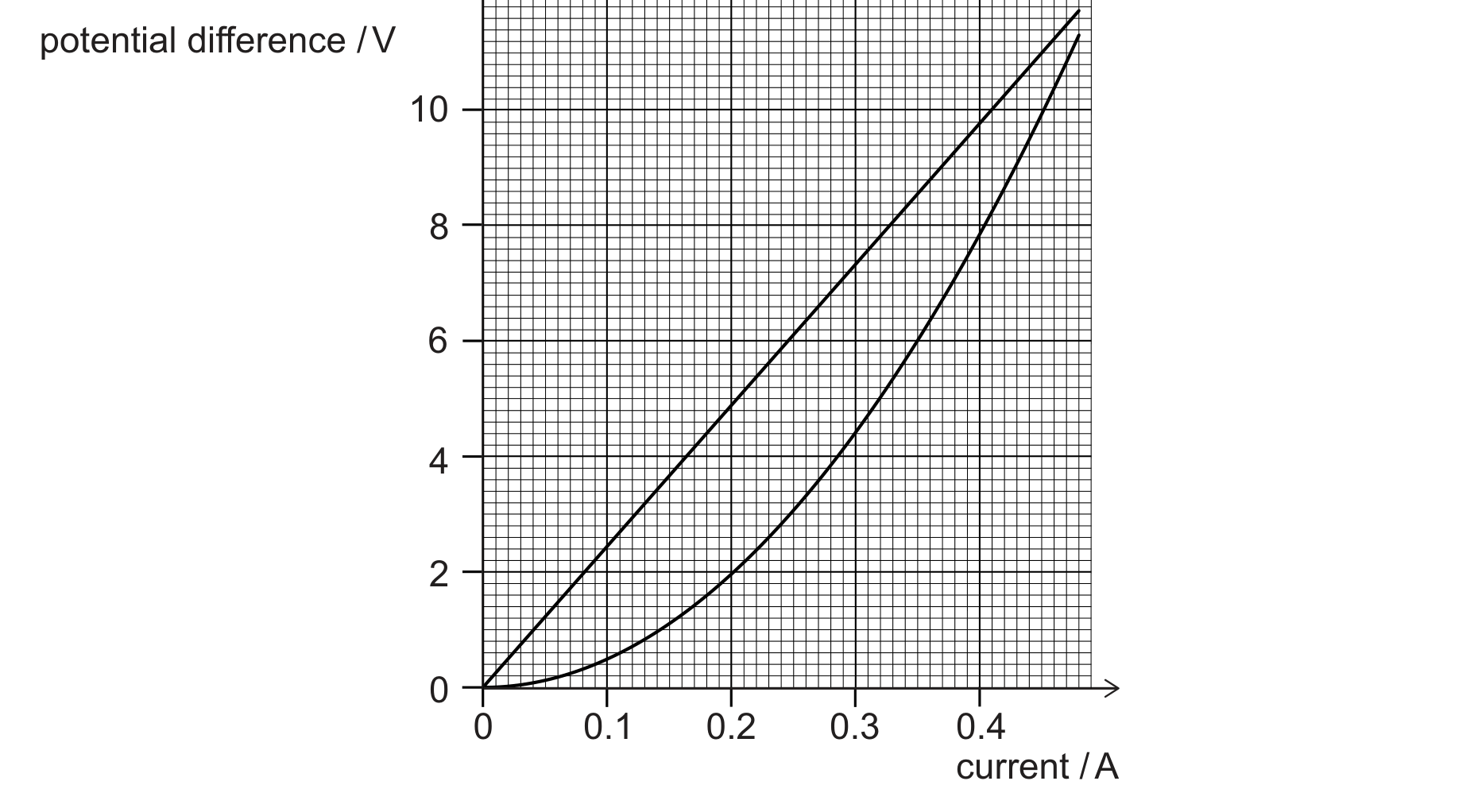

The graph shows potential difference plotted against current for a filament lamp and a resistor: one curve is very close to a straight line through the origin (the resistor, roughly constant $V/I$); the other curve bows sharply upward with an increasing gradient as current increases (the filament lamp, whose resistance rises with current), reaching about $1.66\text{ V}$ at $I=0.18\text{ A}$ and passing through $V=6.0\text{ V}$ at about $I=0.35\text{ A}$.

The lamp and the resistor are connected in parallel with each other to a $6.0\text{ V}$ power supply and the current in the lamp, $I$, is recorded.

In a second circuit, the lamp and the resistor are now connected in series with each other to the same power supply, and the current in the resistor is $0.18\text{ A}$. The potential difference across the lamp, $V$, is recorded.

What are the values of $I$ in the first circuit and $V$ in the second circuit?

A child is bouncing a ball of mass $0.16\text{ kg}$ vertically up and down on a bat. Each time the ball hits the bat the duration of the contact is $0.20\text{ s}$. The speed of the ball immediately before hitting the bat and immediately after it loses contact with the bat is $4.0{\text{ m s}}^{-1}$.

What is the average contact force between the bat and the ball during each collision?

(gravitational field strength $=10{\text{ N kg}}^{-1}$)

A transverse wave on a string has a speed of $500{\text{ m s}}^{-1}$.

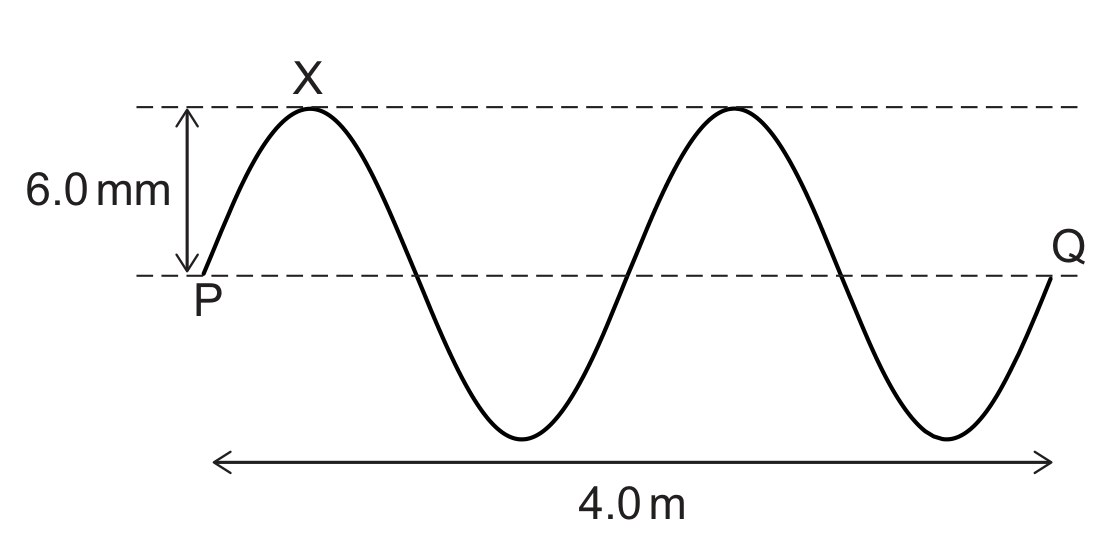

The horizontal distance between two points P and Q on the wave is $4.0\text{ m}$, as shown in the diagram: starting from P (at equilibrium, rising), the wave rises to a peak at X, falls through a trough, rises to a second peak, falls through a second trough, and rises back to equilibrium at Q -- two complete wavelengths between P and Q.

At time $t=0\text{ ms}$, point X on the string is at its maximum displacement of $6.0\text{ mm}$ above equilibrium.

What is the displacement of point X at time $t=7.0\text{ ms}$?

A neutral atom Q of a particular element contains a total of $20$ particles (protons, neutrons and electrons).

The table shows information about the number of particles and relative charges of four atoms or ions W, X, Y and Z.

| atom or ion | number of particles | relative charge of atom or ion | |---|---|---| | W | 21 | 0 | | X | 21 | $-1$ | | Y | 20 | $+1$ | | Z | 22 | 0 |

Which of these atoms or ions could be of a different isotope to Q but of the same element as Q?

Radioactive isotope X undergoes a single beta (${\beta }^{-}$) decay to form the stable isotope Y.

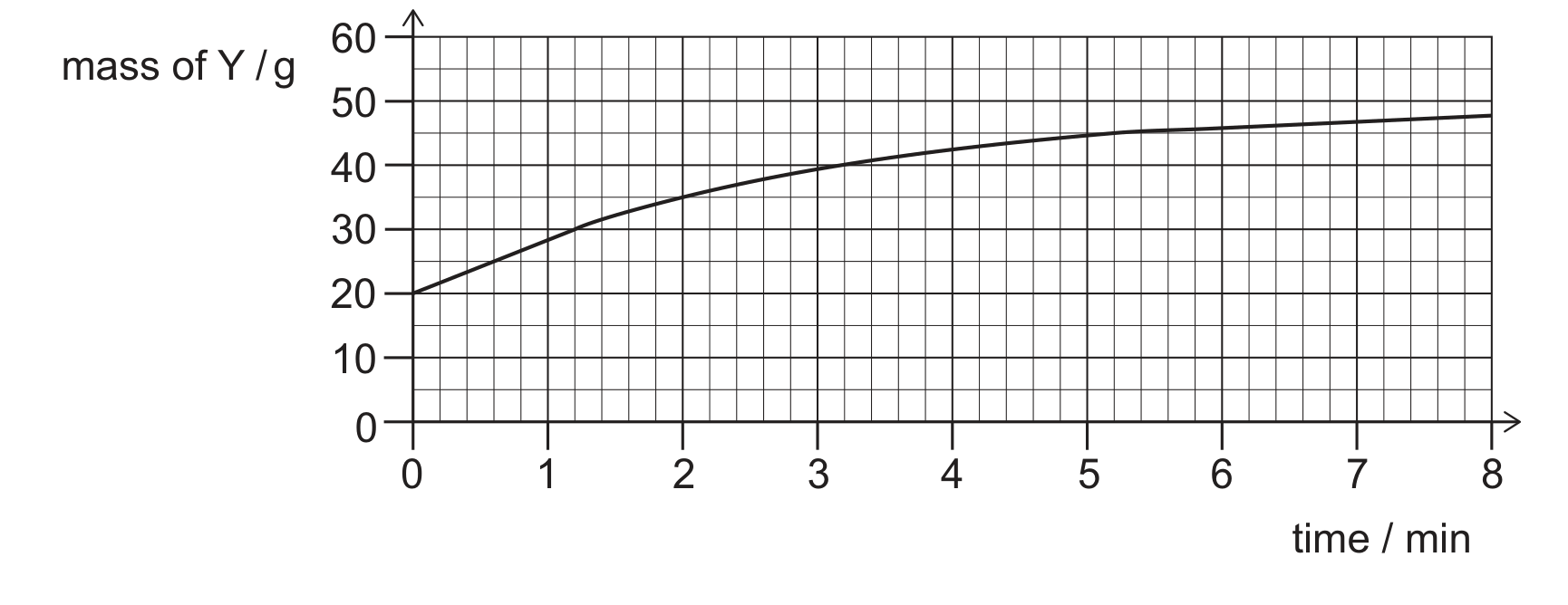

A sample consists only of X and Y. The graph shows how the mass of Y present in the sample varies with time. After a long time, the mass of Y in the sample becomes a constant $50\text{ g}$: starting at $20\text{ g}$ at $t=0$, the mass of Y rises smoothly, passing through about $35\text{ g}$ at $t=2\text{ min}$ and about $42.5\text{ g}$ at $t=4\text{ min}$, approaching $50\text{ g}$ at large $t$.

What is the half-life of X?

A piece of metal of mass $50\text{ g}$ is at thermal equilibrium in a hot liquid at temperature $T$.

The metal is removed from the liquid and immediately placed in $100\text{ g}$ of water that is at $20{}^{\circ }\text{C}$.

The water is stirred and reaches a final temperature of $26{}^{\circ }\text{C}$.

| material | specific heat capacity / J kg${}^{-1}$ ${}^{\circ }$C${}^{-1}$ | |---|---| | hot liquid | 2000 | | metal | 350 | | water | 4200 |

What is the temperature $T$ of the hot liquid?

(Assume that heat transfers to or from the surroundings are negligible.)

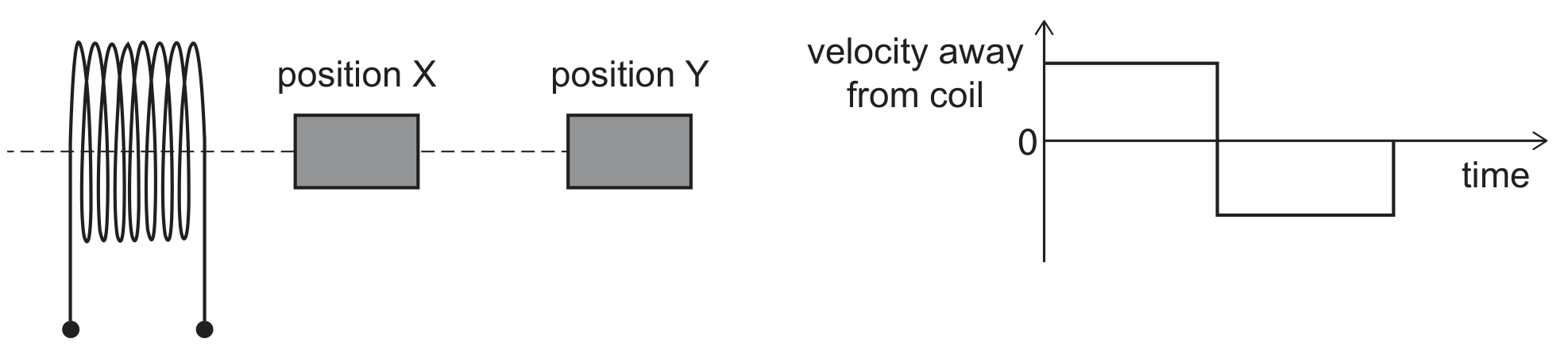

A bar magnet is placed at position X close to one end of a coil and on the axis of the coil, as shown.

The graph shows how the velocity of the magnet varies as it is then moved rapidly to position Y and back to position X: the velocity away from the coil is a constant positive value while moving from X to Y, then instantly switches to a constant negative value (of the same magnitude) while moving back from Y to X.

The magnetic field of the bar magnet still affects the coil when the magnet is at position Y.

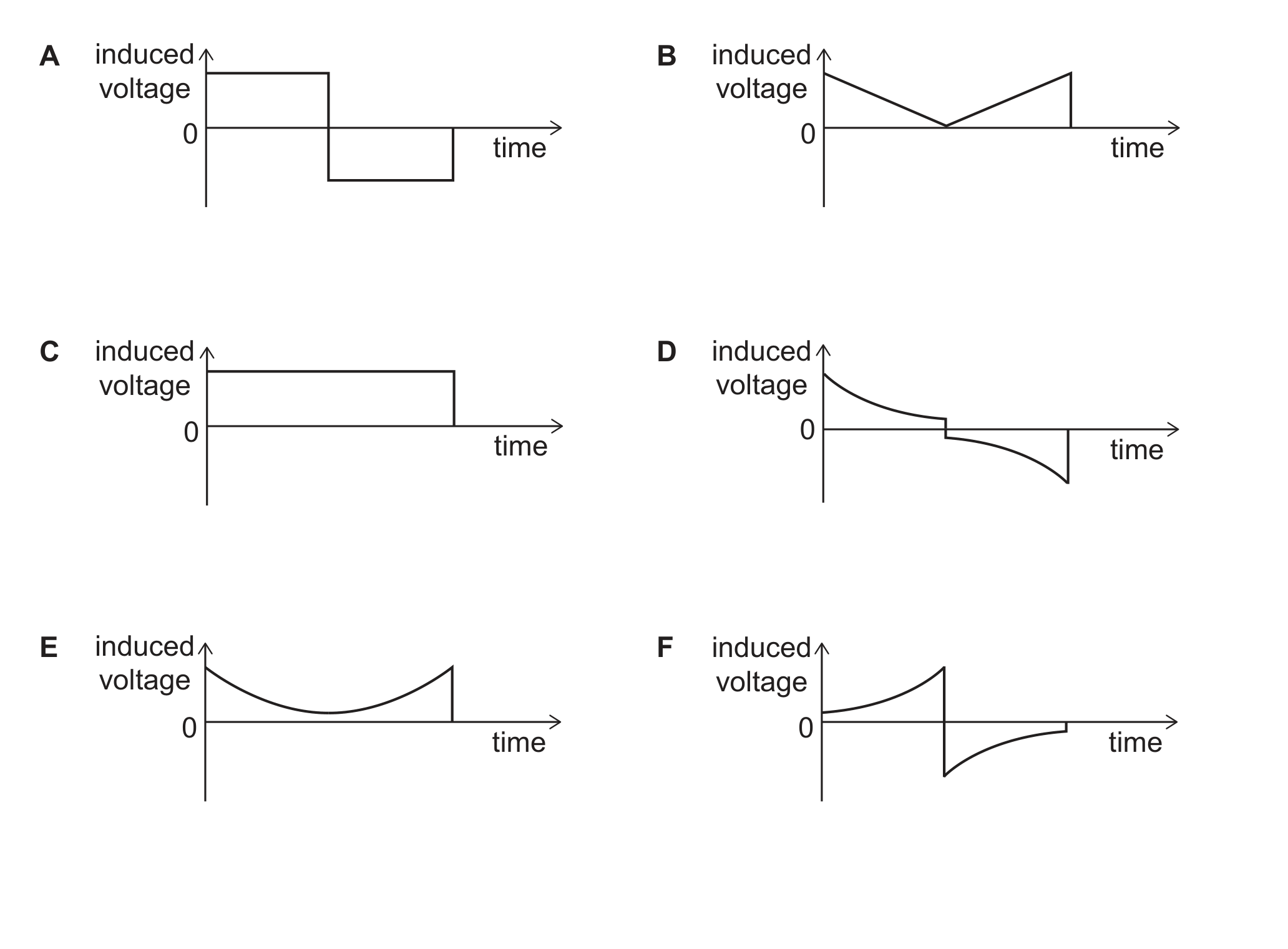

Which graph represents how the induced voltage in the coil changes as the magnet moves?

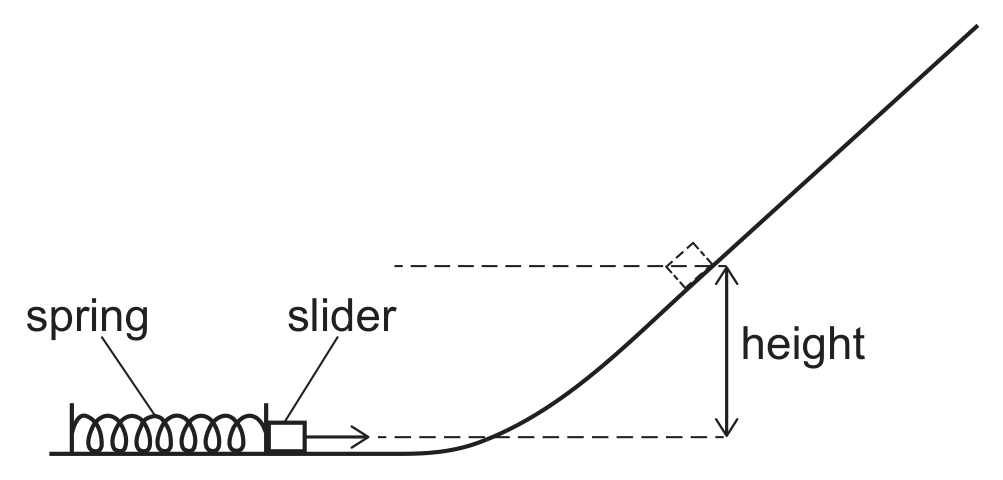

A small slider of mass $30\text{ g}$ is at rest near the bottom of a frictionless slope and in contact with a light uncompressed spring, as shown.

The spring is compressed by $5.0\text{ cm}$ and the slider remains in contact with it.

The spring is released and causes the slider to rise up the slope to a maximum vertical height of $20\text{ cm}$.

The slider is replaced with one of mass $20\text{ g}$.

The spring is now compressed by $15\text{ cm}$, and the new slider remains in contact with it.

To what maximum vertical height does this new slider rise after it is released?

(the spring obeys Hooke's law; assume that air resistance is negligible)

A tall, smooth cylinder contains air at atmospheric pressure of $1.00\times 10^5\text{ Pa}$. The density of the air in the cylinder is $1.20{\text{ kg m}}^{-3}$.

A heavy piston is now placed in the top of the cylinder and allowed to fall slowly downwards, compressing the air until the piston rests in equilibrium.

The mass of the piston is $50.0\text{ kg}$ and its cross-sectional area is $0.0200{\text{ m}}^2$.

What is the density of the air in the cylinder when the piston rests in equilibrium?

(gravitational field strength $=10{\text{ N kg}}^{-1}$; assume that the air behaves as an ideal gas and that the temperature remains constant)

There are two types of earthquake wave, called P-waves and S-waves.

When an earthquake occurs, both types of wave are produced at the same time and follow the same path.

The P-waves travel outwards from the source at $5.0{\text{ km s}}^{-1}$ and the S-waves travel out at $3.0{\text{ km s}}^{-1}$.

A seismic monitoring station detects the P-waves $30\text{ s}$ before the S-waves.

How far have the waves travelled from the source of the earthquake to reach the seismic monitoring station?

A solid cuboid has a mass of $32\text{ kg}$ and a density of $4.0{\text{ g cm}}^{-3}$.

Faces 1, 2 and 3 of the cuboid have different areas.

When the cuboid rests on one of these faces on a flat horizontal surface, the pressure on the surface due to the cuboid is $1.6{\text{ N cm}}^{-2}$.

When it rests on another of these faces, the pressure on the surface due to the cuboid is $0.80{\text{ N cm}}^{-2}$.

What is the pressure on the surface due to the cuboid when it rests on the third of these faces?

(gravitational field strength $=10{\text{ N kg}}^{-1}$)
