NSAA 2023 Section 1 Part B (ESAT Physics)

An object has mass $m$ and weight $W$ on the Moon. The Moon has no atmosphere.

The object is released from rest at height $h$ above the surface of the Moon.

Which expression gives the speed of the object as it reaches the surface?

A spaceship of mass $10000\text{ kg}$ is moving at $2.0{\text{ m s}}^{-1}$ relative to a space station.

The spaceship is captured by a robotic arm attached to the space station and brought to rest by a force of $1000\text{ N}$.

How far will the spaceship move in its initial direction relative to the space station while the force is being applied?

(Assume that the acceleration of the space station is negligible.)

A heater is connected in series with a dc power supply, a variable resistor and an ammeter in the circuit shown.

The variable resistor is adjusted until the reading on the ammeter is $0.50\text{ A}$ and the resistance of the heater is $8.0\Omega$.

How much energy is converted to thermal energy in $5.0$ minutes?

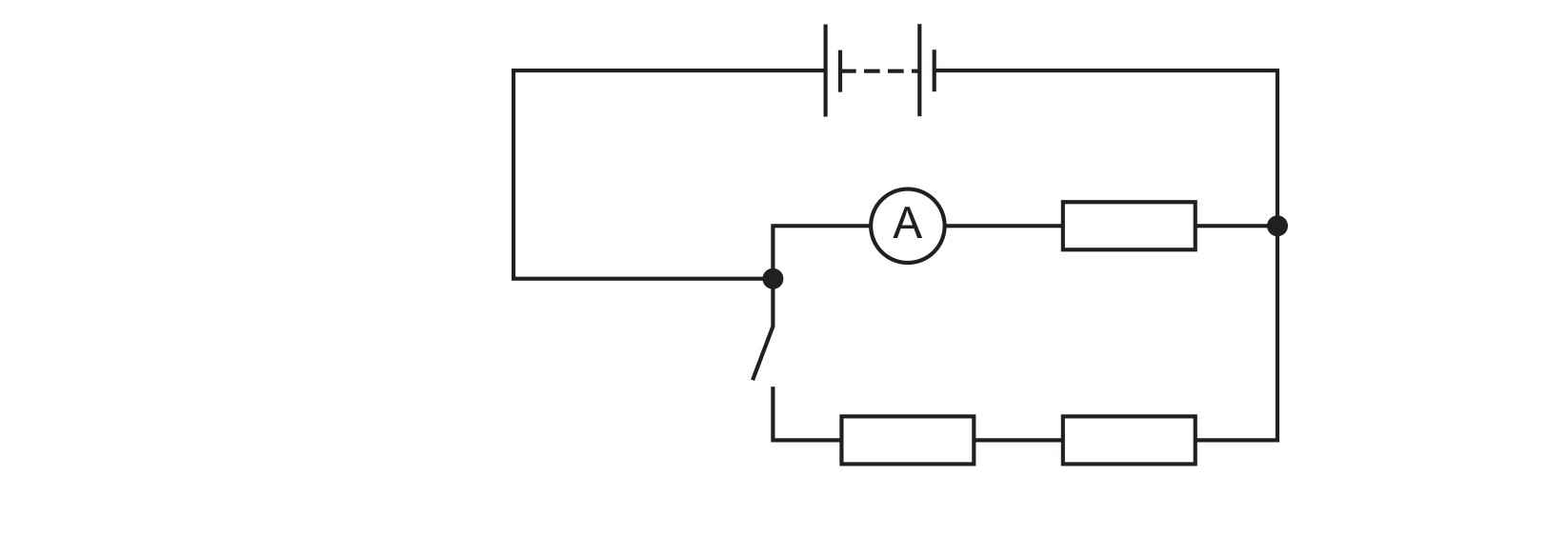

A circuit is set up as shown. All three resistors are identical.

When the switch is open, the reading on the ammeter is $1.0\text{ A}$ and the power transferred from the battery is $1.0\text{ W}$: with the switch open, only the top branch (the ammeter in series with one resistor) completes the circuit with the battery, the bottom branch (with the other two resistors in series) being disconnected by the open switch.

The switch is now closed, connecting the bottom branch (two resistors in series) in parallel with the top branch (ammeter and one resistor), between the same two nodes.

What is the new reading on the ammeter and what is the new power transferred from the battery?

A car travels for a total time of $20\text{ s}$. For the first $t$ seconds its speed is $5.0{\text{ m s}}^{-1}$ and for the remainder of the journey its speed is $10{\text{ m s}}^{-1}$.

The average speed for the whole journey is $8.5{\text{ m s}}^{-1}$.

What is the value of $t$?

A spring is initially unstretched. A force $F$ is used to stretch the spring. The extension $x$ and the energy $E$ stored in the stretched spring are measured for different values of $F$.

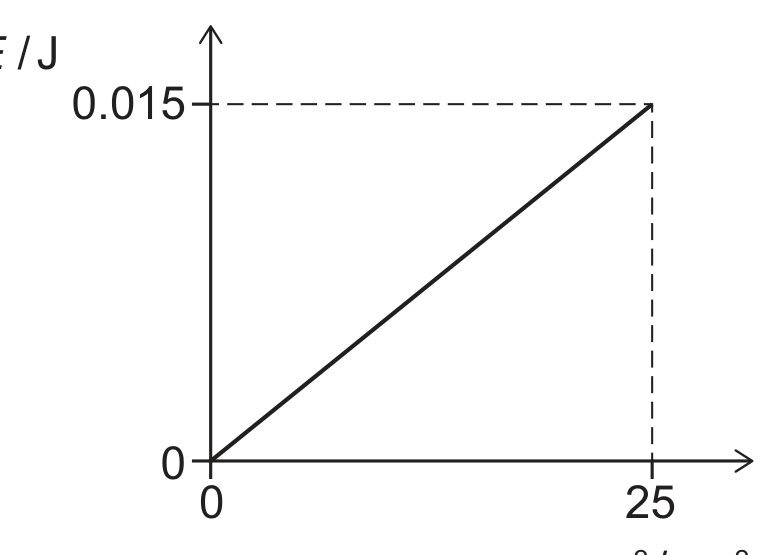

The graph shows how the energy $E$, in J, varies with the extension squared, $x^2$, in cm${}^2$: a straight line through the origin, passing through $E=0.015\text{ J}$ at $x^2=25{\text{ cm}}^2$.

What is the magnitude of $F$ when the spring stores $0.015\text{ J}$ of energy?

The nuclide symbol for helium-3 is ${}_2^3\text{He}$.

A nuclide of element X has double the nuclear charge and four times the mass of helium-3.

This nuclide of X decays by a single beta (${\beta }^{-}$) emission to form a nuclide of element Z.

What is the nuclide symbol for this nuclide of Z?

A solid, cylindrical metal bar has a uniform cross-sectional area of $12{\text{ cm}}^2$ and a volume of $180{\text{ cm}}^3$.

The bar rests on a horizontal surface on one of its circular faces.

The pressure on the surface due to the bar is $0.45{\text{ N cm}}^{-2}$.

What is the density of the metal, in g cm${}^{-3}$?

(gravitational field strength $=10{\text{ N kg}}^{-1}$)

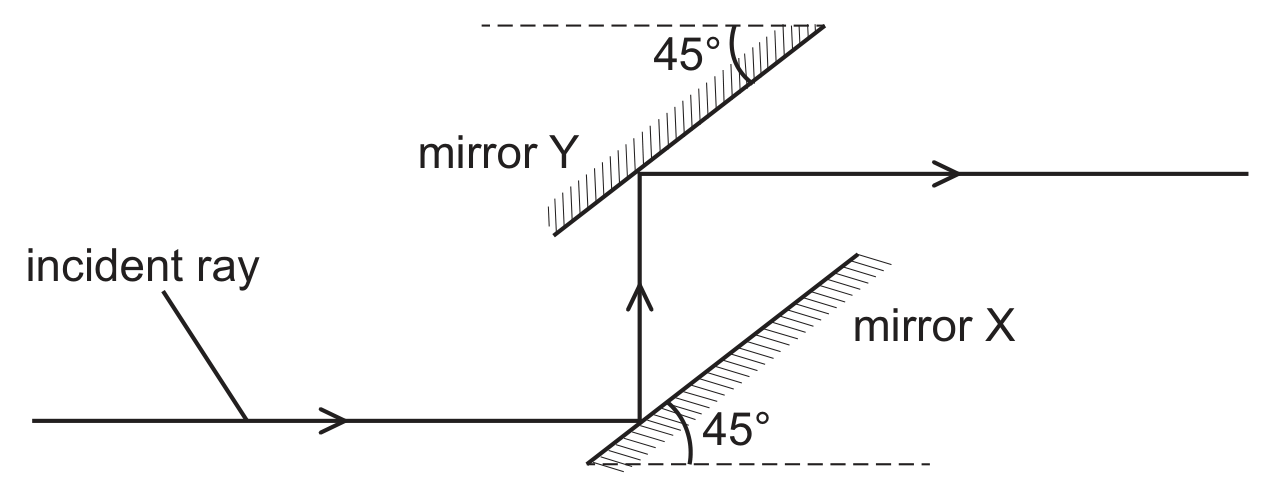

A ray of light is directed horizontally towards two long, plane mirrors X and Y which are both at $45^{\circ }$ to the horizontal. After two reflections the ray is travelling horizontally again (the standard periscope arrangement: the horizontal ray hits mirror X, is reflected straight up, hits mirror Y, and is reflected horizontal again, continuing in its original direction).

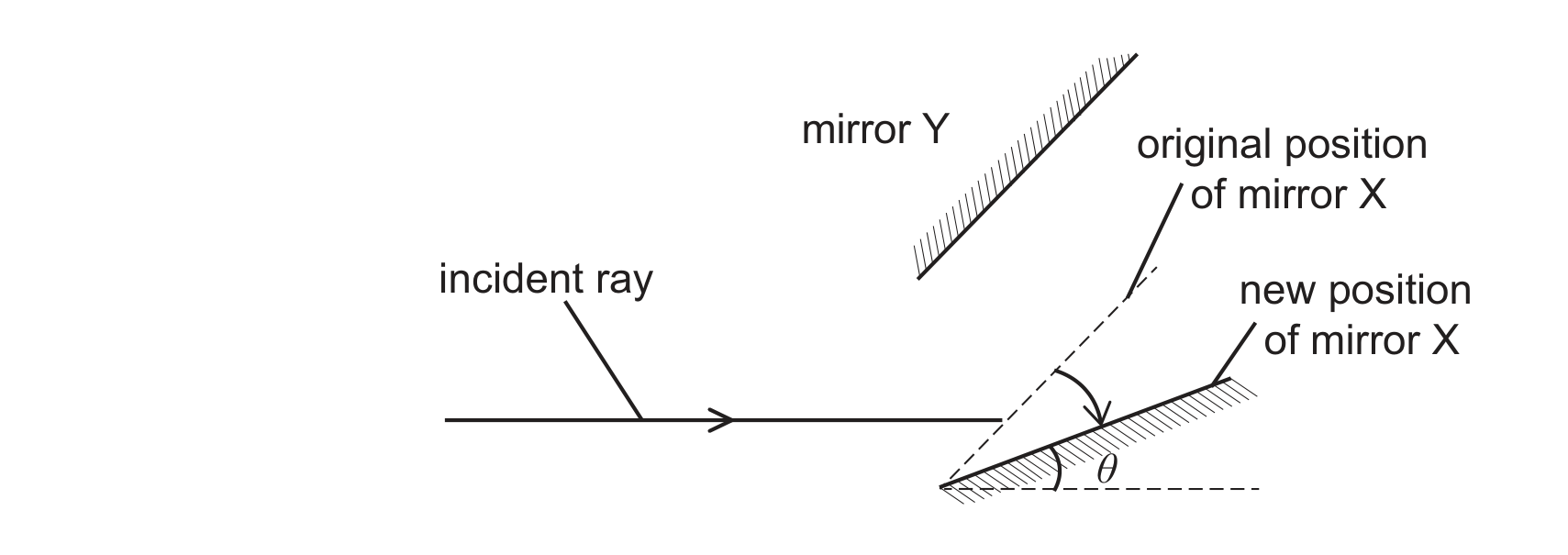

Mirror X is now rotated clockwise through less than $45^{\circ }$. After this rotation, mirror X makes an angle $\theta$ with the horizontal, where $\theta <45^{\circ }$. The direction of the incident ray is unchanged.

In what direction and through what angle should mirror Y be rotated in order for the ray to be still horizontal and travelling to the right after reflecting from mirror Y?

Two samples of pure radioactive isotopes X and Y decay with half-lives of $2$ days and $3$ days, respectively.

Both X and Y decay in a single step into different stable isotopes.

Initially the number of atoms of X is twice the number of atoms of Y.

After how many days are the expected numbers of atoms of X and Y equal to each other?

Two stones are held at rest at the same height at the top of a cliff.

One stone is released and falls freely under gravity.

A time $T$ later, the other stone is released and falls freely under gravity.

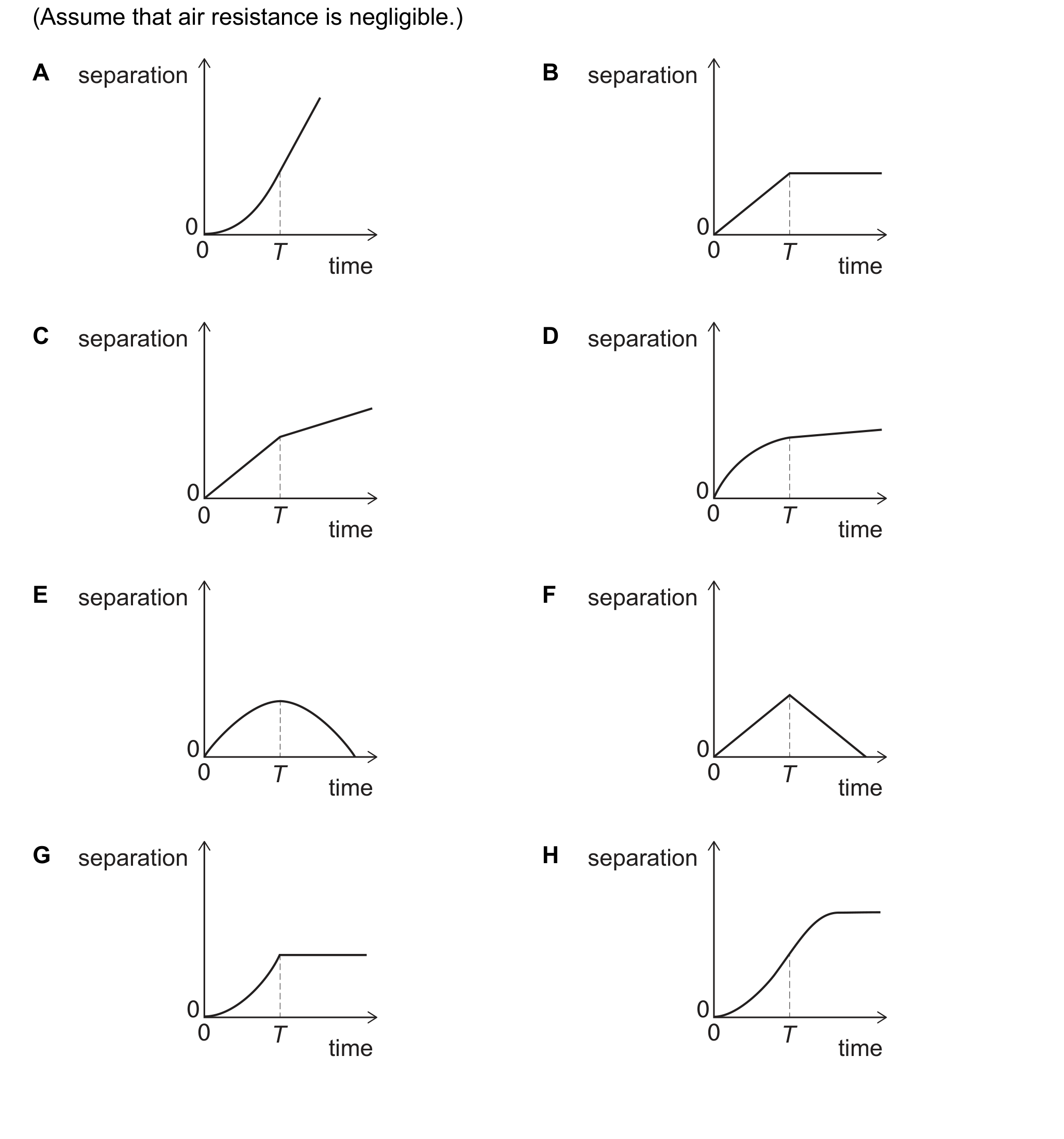

Which graph shows how the vertical distance separating the stones varies with time, from the moment the first stone is released and before the first stone lands?

(Assume that air resistance is negligible.)

A large, flat, metal plate is coated on one side with a layer of thermally insulating material of the same thickness $a$ as the metal plate.

The uninsulated top surface of the metal plate is maintained at a constant temperature $T_1$.

The bottom surface of the insulating material is maintained at a constant, lower temperature $T_2$.

The system is in equilibrium.

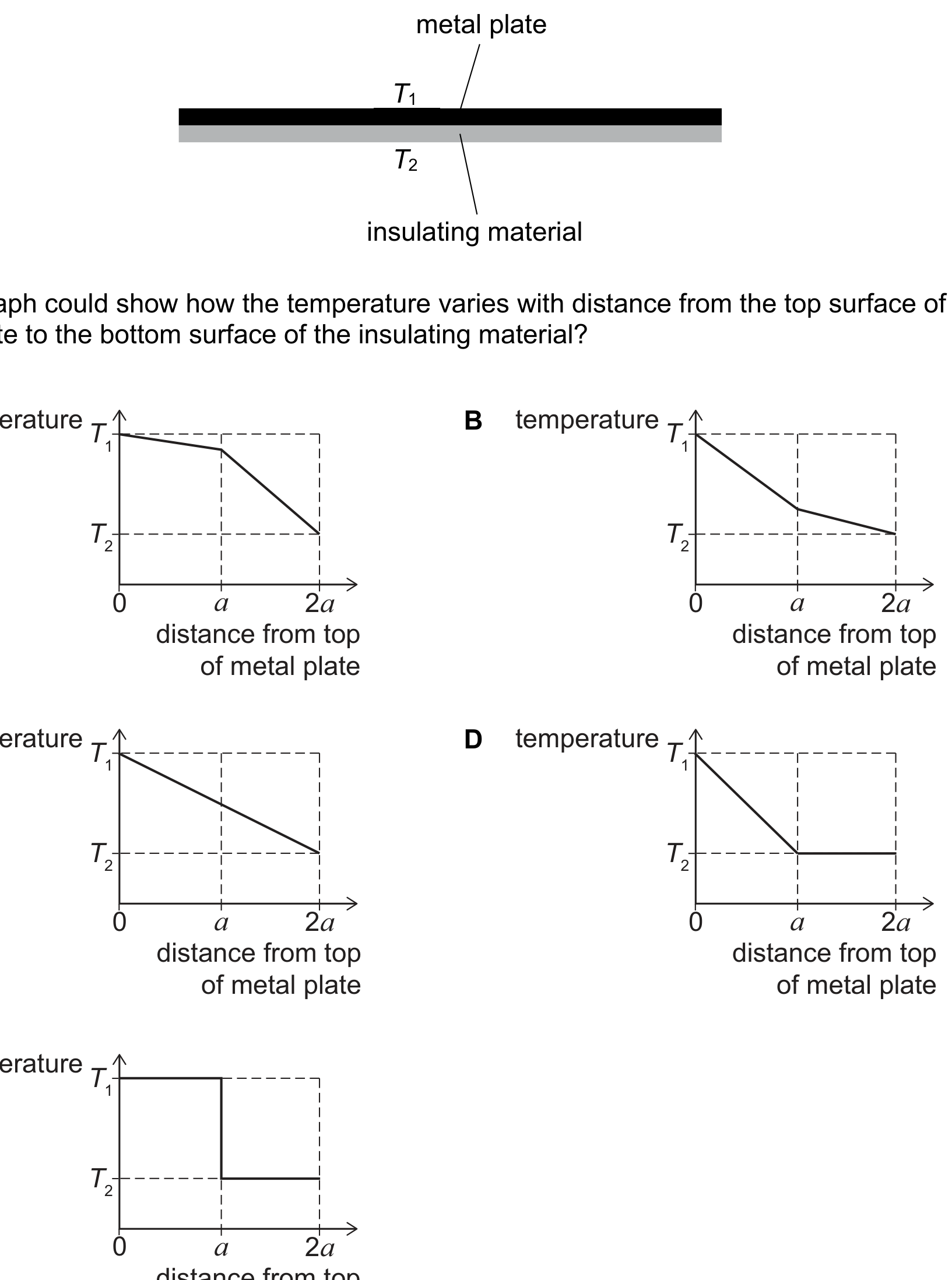

Which graph could show how the temperature varies with distance from the top surface of the metal plate to the bottom surface of the insulating material?

$10\text{ g}$ of ice at $0{}^{\circ }\text{C}$ is added to $20\text{ g}$ of liquid water at $30{}^{\circ }\text{C}$.

The mixture reaches thermal equilibrium.

What is its equilibrium temperature, $T$?

(specific latent heat of fusion of ice $=330{\text{ J g}}^{-1}$; specific heat capacity of liquid water $=4.2{\text{ J g}}^{-1}{}^{\circ }{\text{C}}^{-1}$; assume that there is no heat transfer between the mixture and its surroundings)

The voltage output of a power station is stepped up using a transformer before the power is transmitted to a distant town. The primary coil of this transformer has $300$ turns and the secondary coil has $1500$ turns.

In the town, a step-down transformer reduces the voltage supplied by the transmission cables to $33000\text{ V}$ for distribution within the town. The step-down transformer supplies a current of $1500\text{ A}$.

The current in the transmission cables is $450\text{ A}$ and both transformers are ideal and $100\%$ efficient.

What is the voltage output of the power station?

(Assume that the resistance of the transmission cables is negligible.)

A physicist introduces a thin piece of glass into the path of a laser beam in order to delay the beam. The light of the laser beam has a single wavelength $L$ in air.

While the beam is inside the glass it completes $10$ more complete oscillations compared to the same beam passing through the same thickness of air.

The speed of light in air is $c$ and the speed of light in glass is $\frac{2}{3}c$.

What is the thickness of the glass?

A transverse wave with an amplitude of $3.0\text{ cm}$ travels along a stretched string. The wave has a frequency of $12\text{ Hz}$ and a wavelength of $0.25\text{ m}$.

What is the average speed of a particle in the string as the string oscillates during a time of $2.0\text{ s}$?

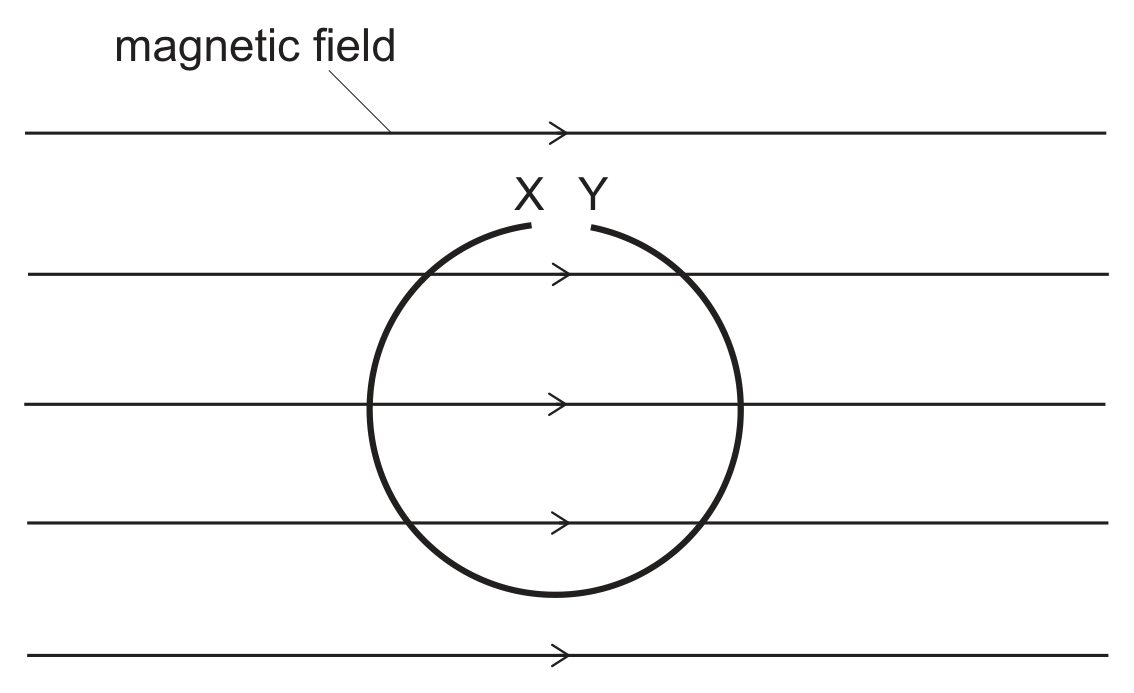

A copper ring, with a small gap XY, rests in a uniform horizontal magnetic field. The ring lies in the plane of the page and the direction of the magnetic field is horizontal from left to right, as shown in the diagram (the gap is at the top of the ring, with X just to the left of the gap and Y just to the right).

A voltage is now applied across XY, such that X is connected to the positive terminal of the power supply and Y is connected to the negative terminal.

Which statement describes the motion of the ring immediately after the voltage is applied?

(Assume that the mechanism supporting the ring allows the ring to move freely and allows the voltage to be applied continuously.)

A battery and two resistors X and Y are connected in series.

The power transferred by the battery is $6\text{ W}$.

The resistance of X is $10\Omega$.

The voltage across Y is $4\text{ V}$.

What is the current in the circuit?

A cubic block of wood of side length $L$ floats in water with the top face of the block horizontal and above the surface.

The block is displaced downwards by a small distance $\frac{L}{10}$ without becoming fully submerged, and then released.

The density of the wood is $0.80{\text{ g cm}}^{-3}$ and the density of water is $1.0{\text{ g cm}}^{-3}$.

What is the initial acceleration of the block after it is released?

(gravitational field strength $=10{\text{ N kg}}^{-1}$)

A diver at the bottom of a lake of depth $d$ fills a syringe with an ideal gas and seals the nozzle. The piston remains free to move. The volume of the gas in the syringe at the bottom of the lake is $90{\text{ cm}}^3$.

As the diver returns to the surface, the temperature of the gas does not change. At the surface of the lake the gas in the syringe is at atmospheric pressure and the volume of the gas is $720{\text{ cm}}^3$.

What is the volume of the gas in the syringe at a depth $\frac{d}{2}$?
