NSAA 2017 Section 1 Part B (ESAT Physics)

A car is travelling along a horizontal road in a straight line.

The graph is a velocity-time graph for part of the car's journey.

During this part of the journey, what is the total distance that the car travels while it is decelerating?

When a saucepan of water is heated from below, convection currents form and transfer heat through the liquid.

Here are three statements about the water as it is heated:

1. The mass of a fixed volume of the water increases.
2. The density of a fixed mass of the water decreases.
3. The volume of a fixed mass of the water increases.

Which of these statements help(s) to explain how convection currents are formed?

Table 1 gives the approximate frequency ranges of sections of the electromagnetic spectrum: radio waves, below $3.0\times 10^9\text{ Hz}$; microwaves, $3.0\times 10^9$ to $3.0\times 10^{12}\text{ Hz}$; infrared waves, $3.0\times 10^{12}$ to $4.3\times 10^{14}\text{ Hz}$; visible light, $4.3\times 10^{14}$ to $7.5\times 10^{14}\text{ Hz}$; ultraviolet waves, $7.5\times 10^{14}$ to $3.0\times 10^{17}\text{ Hz}$; X-rays, $3.0\times 10^{17}$ to $3.0\times 10^{19}\text{ Hz}$; gamma rays, above $3.0\times 10^{19}\text{ Hz}$.

Table 2 gives information about two different types of wave in air. Waves 1 to 3 are longitudinal waves formed by an object vibrating; waves 4 to 6 are electromagnetic waves. Wave 1: longitudinal, wavelength $1.0\times 10^{-4}\text{ m}$. Wave 2: longitudinal, wavelength $1.0\times 10^{-2}\text{ m}$. Wave 3: longitudinal, wavelength $1.0\times 10^{-1}\text{ m}$. Wave 4: electromagnetic, wavelength $5.0\times 10^{-7}\text{ m}$. Wave 5: electromagnetic, wavelength $5.0\times 10^{-1}\text{ m}$. Wave 6: electromagnetic, wavelength $1.0\times 10^3\text{ m}$.

The speed of sound in air is $300{\text{ m s}}^{-1}$. The speed of light in air is $3.0\times 10^8{\text{ m s}}^{-1}$.

A person detects only two of these waves unaided, using just their eyes and ears. Which two waves does the person detect?

A charge of $60\text{ C}$ passes through an electrical component when a steady voltage of $10\text{ V}$ is applied across it for $30$ seconds. The resistance of the component remains constant throughout.

What is the resistance of the component?

An electric motor is used to pull a broken-down car slowly from the road up a ramp on to the back of a breakdown truck.

The car has a mass of $1200\text{ kg}$ and is lifted through a vertical height of $1.0\text{ m}$.

The total input energy to the motor is $28\text{ kJ}$ and it is $75\%$ efficient.

In the process of lifting the car, energy is lost to the surroundings from the motor and from other causes.

What is the total energy lost to the surroundings?

(gravitational field strength $=10{\text{ N kg}}^{-1}$)

In one type of medical scanner a source is placed inside a patient's body. This source causes pairs of gamma-rays to be emitted simultaneously in opposite directions.

Detectors on each side of the patient are used to detect the gamma-rays. The distance between the two detectors is $3.0\text{ m}$. When the source is at Q, half-way between the detectors, the two gamma-rays arrive at the same time.

In a particular scan the gamma-rays arrive at the two detectors with a time difference of $4.0\times 10^{-10}\text{ s}$.

Assume that, inside the patient, the gamma-rays travel at a speed of $3.0\times 10^8{\text{ m s}}^{-1}$.

How far from Q, half-way between the detectors, is the gamma-ray source?

When a plutonium-239 nucleus absorbs a neutron it undergoes nuclear fission. One particular fission reaction results in the creation of xenon and zirconium as daughter nuclei. The nuclear equation for this reaction is shown but with some non-zero integers replaced by the letters $w$, $x$, $y$ and $z$:$${}_0^1\text{n}+{}_{94}^{239}\text{Pu}\to {}_{54}^w\text{Xe}+{}_x^y\text{Zr}+z{}_0^1\text{n}$$Which equation is correct?

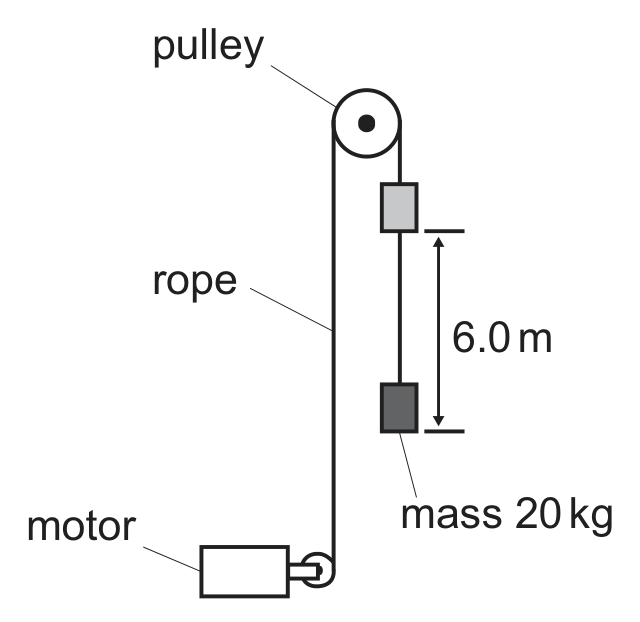

An electric motor is connected to a constant $12\text{ V}$ d.c. supply. The motor is used to lift a mass of $20\text{ kg}$ by means of a rope and pulley. The mass is lifted vertically through a height of $6.0\text{ m}$ in a time of $5.0\text{ s}$. The complete lifting system (motor, rope and pulley) is $80\%$ efficient.

What is the current in the electric motor?

(gravitational field strength $=10{\text{ N kg}}^{-1}$)

The nuclide ${}_Q^P\text{X}$ decays to the stable nuclide Y. During this process four particles are emitted: an $\alpha$-particle and three ${\beta }^{-}$ particles.

Which of the following is not a nuclide that could be formed at any stage during this process?

The radius of an iron-56 atom is $3.0\times 10^4$ times greater than the radius of an iron-56 nucleus.

What is the value of $\frac{\text{density of an iron atom}}{\text{density of an iron nucleus}}$?

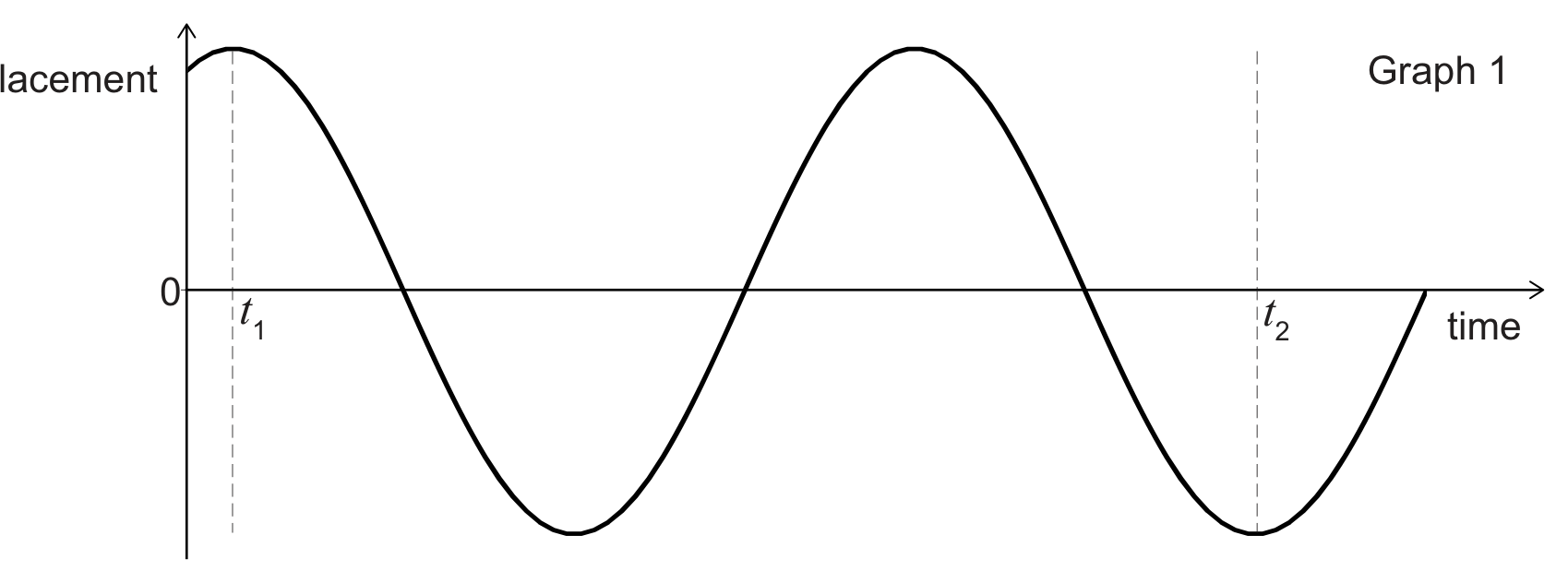

Graph 1 shows how the displacement of one of the particles of a medium varies with time in seconds as a wave travels through the medium.

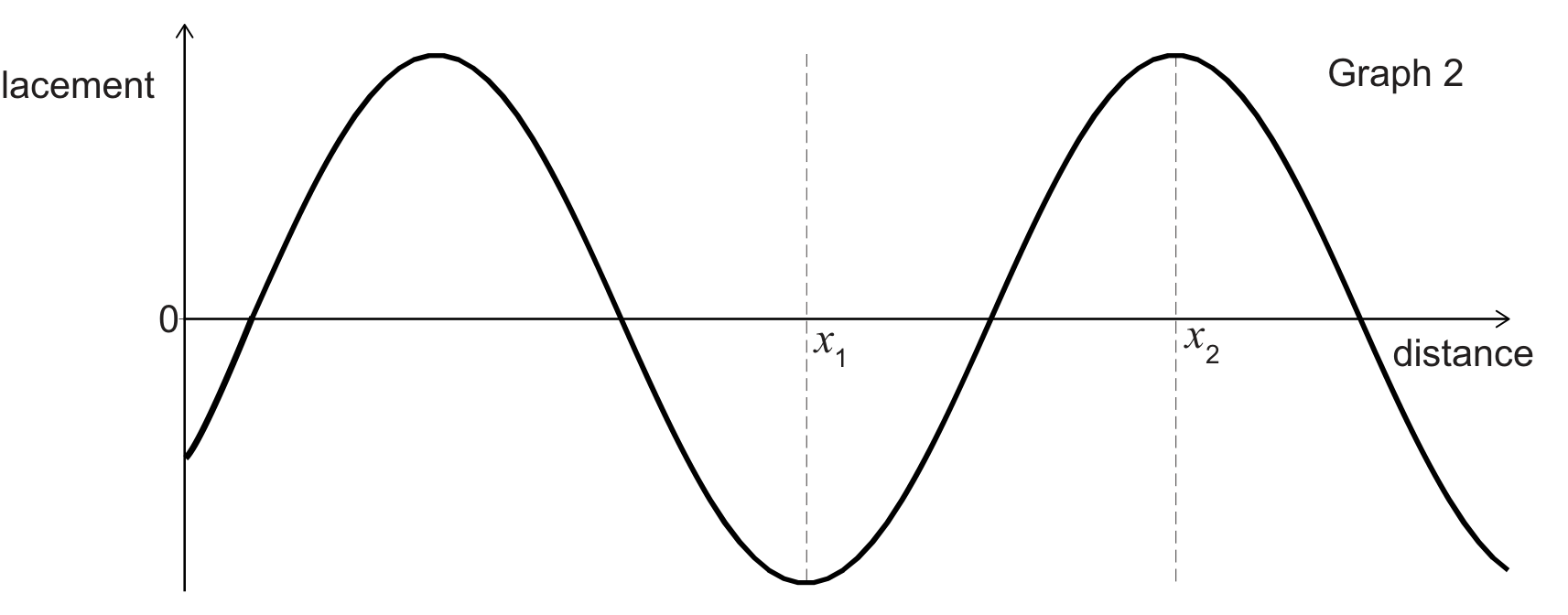

Graph 2 shows how the displacement varies with distance in metres at one time for the same wave.

Which expression gives the speed in ${\text{m s}}^{-1}$ of the wave?

A kettle is designed to work from a car's power socket. The kettle has a power rating of $150\text{ W}$ when a constant voltage of $12.0\text{ V}$ d.c. is applied across its element.

How much charge passes through the element of this kettle when the voltage of $12.0\text{ V}$ is applied across it for $20$ minutes?

A freight train travelling on a straight horizontal track at $2.0{\text{ m s}}^{-1}$ collides with a passenger train travelling at $5.0{\text{ m s}}^{-1}$ in the opposite direction. Both trains immediately come to a complete stop on the track.

The freight train has three locomotives of $130$ tonnes each and seven container wagons of $30$ tonnes each. The passenger train has two locomotives of $70$ tonnes each and a number of passenger carriages of $10$ tonnes each.

How many passenger carriages does the passenger train have?

Consider the following four calculations:

1. $(200{\text{ kg m s}}^{-1})÷(5{\text{ m s}}^{-1})$

2. $(200\text{ J})÷(5\text{ m})$

3. $(200{\text{ kg m}}^{-3})÷(5{\text{ m}}^3)$

4. $(200\text{ N})÷(5{\text{ m s}}^{-2})$

Which two calculations result in the answer $40\text{ kg}$?

Consider the following three statements about a parachutist of mass $72\text{ kg}$ falling vertically at a constant velocity of $5.0{\text{ m s}}^{-1}$ after the parachute has opened:

1. The parachutist has a constant kinetic energy of $1800\text{ J}$.

2. The parachutist is losing gravitational potential energy at a rate of $3600{\text{ J s}}^{-1}$.

3. Air resistance and the force of gravity acting on the parachutist are a Newton's third law pair of forces.

Which of the statements is/are correct?

(gravitational field strength $=10{\text{ N kg}}^{-1}$)

Two radioactive sources X and Y have half-lives of $3.0$ hours and $2.0$ hours respectively. The product of the decay of both of the sources is a stable isotope of the element Z.

Six hours ago a mixture contained the same number of atoms of both X and Y, and no other atoms.

What fraction of the mixture is now made up of atoms of Z?

Car X passes car Y on a motorway.

Car X is travelling at $1.5$ times the speed of car Y.

The mass of car X is $\frac{4}{5}$ of the mass of car Y.

How do the kinetic energies of the two cars compare?

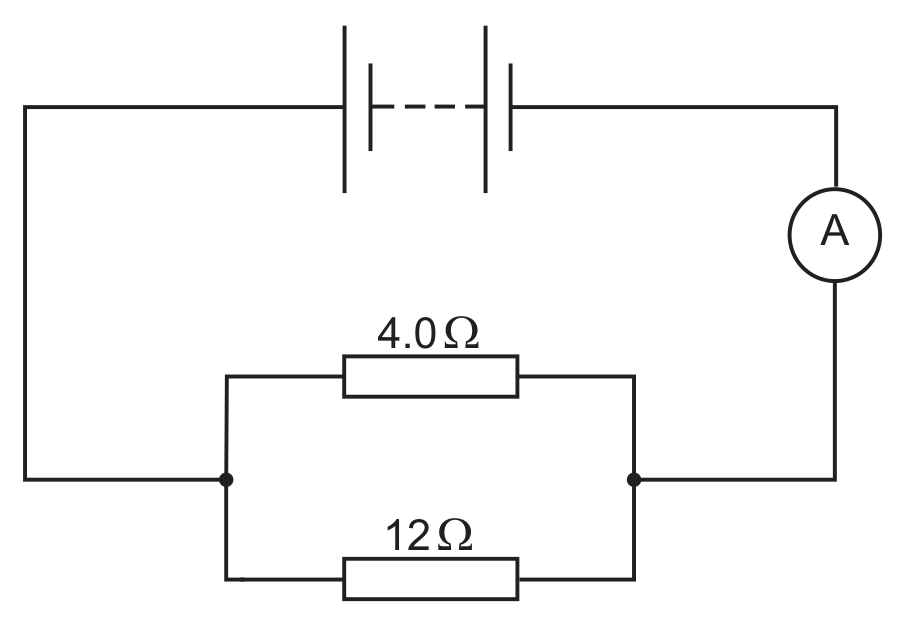

In the following circuit the ammeter shows a reading of $4.0\text{ A}$.

The power dissipated in the $12\Omega$ resistor is $12\text{ W}$.

What is the power dissipated in the $4.0\Omega$ resistor?
